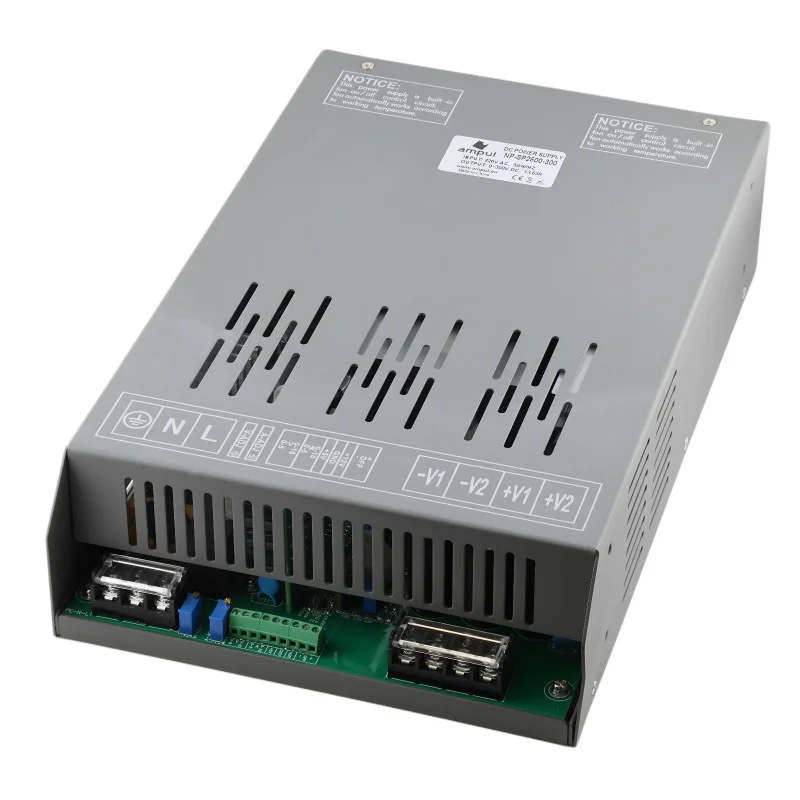

Introducing the IPS-SP-2500 series of highly reliable industrial switching power supplies, designed for demanding applications requiring precisely regulated power. Each model offers continuous regulation of output voltage and current, allowing precise adjustment to the requirements of your applications. These robust power supplies in a metal design with IP20 protection are ideal for installation in distribution cabinets and industrial systems.
Key features:
Variable output voltage: Continuously adjustable from 0 V to 300 V DC using a precision adjustment trimmer
High output current: Stable 8.3 A for demanding applications
Wide input voltage range: 180-264 VAC, 45-65 Hz
High efficiency: 91% for economical operation with minimal heat loss
Active cooling: Ensures optimal operating temperature even under high load
Comprehensive protective functions:
Overload protection (105%-150%)
Surge protection
Short circuit protection with automatic recovery
Thermal protection at 70 °C with automatic recovery when falling below 50 °C
Practical design:
Standard screw terminal blocks for easy connection
LED indicator for visual power check
Durable metal construction ensures long life
Advanced control functions:
External potentiometer: Possibility of remote control of voltage and current using a 10kOhm potentiometer
Analog voltage control: Support 0-5V/0-10V control signal
Auxiliary power output: 12V 0.5A for powering external devices
Remote switching: Default on, high level off (3V-12V)
Ideal application:
Automation systems: Industrial process and production line control
Servo drives and motors: Precise power control for various drives
Telecommunications equipment: Reliable power for critical communication systems
Industrial control systems: Stable power supply for PLCs and other control elements
Test and measurement equipment: Precision power supply for laboratory and test applications
Entrance gates and security systems: Uninterruptible power supply for security elements
Technical specifications:
Input voltage: 180-264VAC, 45-65Hz
Output voltage: 0-300V DC
Output current: max. 8.3 A (300 V DC)
Output voltage accuracy: ± 1.0%
Regulation when changing input voltage: ± 1.0%
Load change regulation: ± 1.0%
Efficiency: 94%
Rise time: 1500 ms, 700 ms at 230 V AC (full load)
Output voltage ripple: 1000 mV
Insulation resistance: 100 M at 500 V DC (25 °C, 70% RH)
Dielectric strength: I/PO/P: 2 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC
Working temperature: -20°C to +60°C
Operating humidity: 0-90% RH (non-condensing)
Vibration resistance: 10-500 Hz, 2 G (tests 10 min/cycle, X, Y, Z axes for 60 min.)
Dimensions: 285 × 185 × 70 mm (L × W × H)
Weight: 4.5 kg
