Descrizione

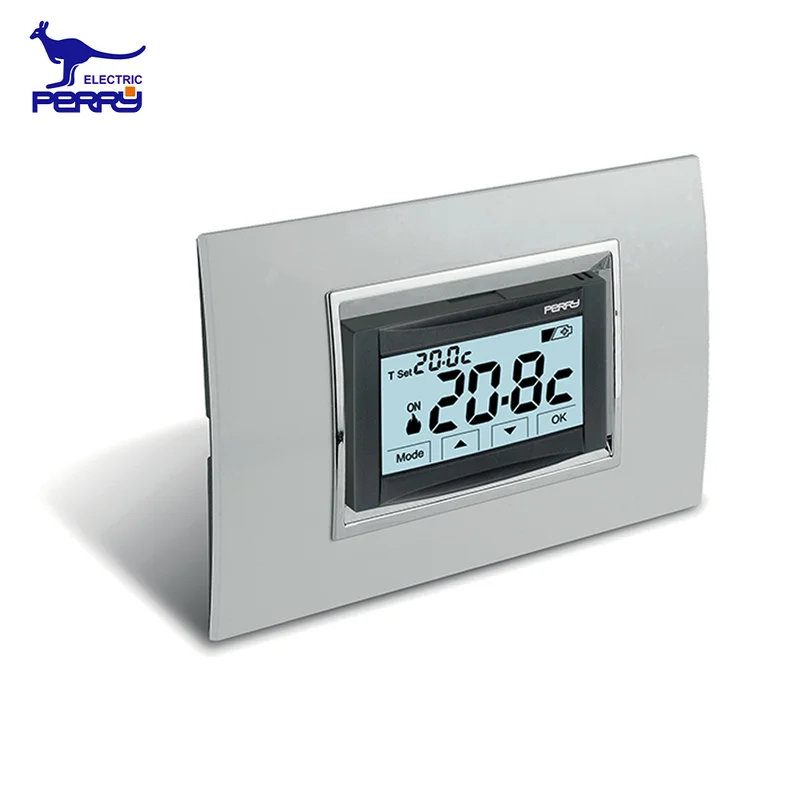

1TITE543 DIGITAL FLUSHMOUNT THERMOSTAT TOUCH SCREEN MOON SOFT TOUCH SERIES
Cover plate not included
FEATURES:
Perry 1TITE543 digital flushmount thermostat 230 V MOON SOFT TOUCH series
230 V~ 5060 Hz flushmount digital thermostat, MOON TOUCH SCREEN series, luminous display
Power supply: 230 V~ 50÷60 Hz
Output: 1 potentialfree changeover contact: 5(3) A/250 V AC
ON/OFF operation with adjustable differential 0.21.2 °C or modulating with control period 720 min
2 temperature levels + antifreeze
Timed backlighting
Telephone command input
LOW BAT indication
Relay status indication
SUMMER/WINTER (EST/INV) control
Temperatureset lock
Correction of measured temperature according to product mounting position
Dimensions (W×D×H) 65 × 53 × 47 mm
With the three frontplates included in the pack, the device is dimensionally and chromatically compatible with the plates of the series:
BTICINO: Light, LivingLight White, Light Tech, LivingLight Tech, Living, LivingLight Anthracite, Matix, Axolute Tech, Axolute Anthracite, Axolute White
VIMAR: Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon White
GEWISS: Chorus ONE/LUX/FLAT/GEO White, Chorus ONE/LUX/FLAT/GEO Black, Chorus ONE/LUX/FLAT/GEO Titanium
Product code: 1TITE543
