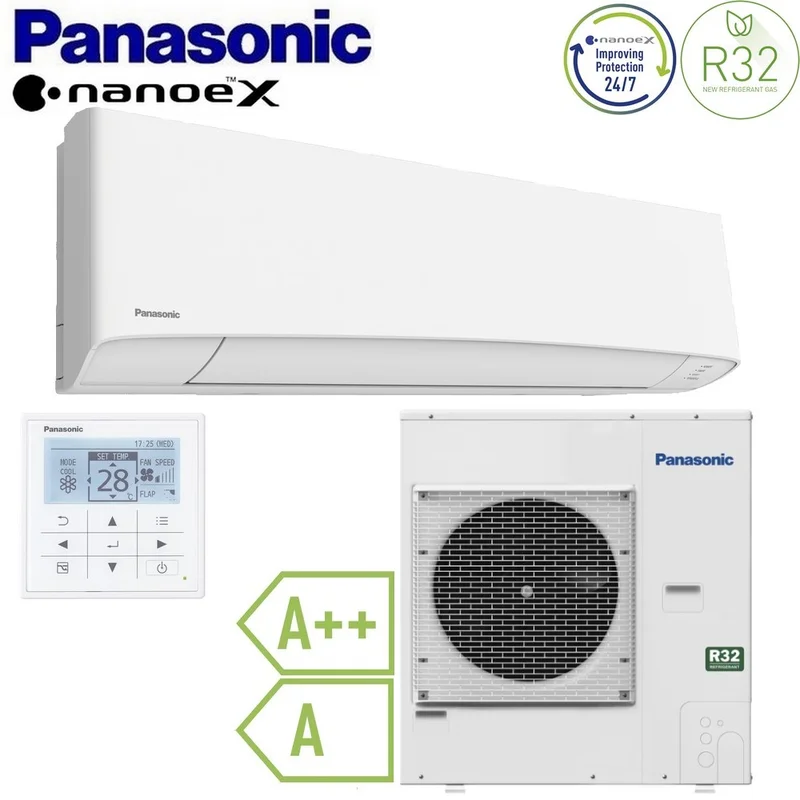

KIT-100PK3Z5 PANASONIC PACi NX 36000 BTU MONO SPLIT
INVERTER heat pump CLASS A++ / wall-mounted controller included
The wall units, finished in an elegant matte color, can be used in various settings such as studios, gyms, high-ceiling areas, and even computer server rooms.
FEATURES:
Compact units with a flat front panel can also be installed in small spaces
Flat front panel with modern design
DC fan motor for greater efficiency and more precise control
Piping can exit in six different directions
nanoe X (Mark 2 = 9.600 billion hydroxyl radicals/sec) standard for improved indoor air quality
The wired remote CZ-RTC6BL allows easy setting of various system functions via Bluetooth®
PAW-FDC connector on the indoor unit board allows connection and control of the fan motor or ERV of external units. The external device can be controlled via the indoor unit remote control
Wall-mounted wired remote model CZ-RTC5B included
Technical Specifications:
Model:
Catalog code indoor unit: S-6010PK3E
Catalog code outdoor unit: U-100PZ3E5
Included wall control code: CZ-RTC5B
Power (BTU): 36000
Energy Efficiency:
SEER/SCOP (W/W): 6.6 / 3.9
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A+
Average annual cooling consumption (kWh/year): 502
Average annual heating consumption (kWh/year): 2795
Performance:
Nominal cooling capacity (kW): 9.0 (3.0 / 9.7)
Nominal heating capacity (kW): 9.0 (3.0 / 10.5)
Indoor unit sound pressure (dB-A): 49 / 45 / 41
Outdoor unit sound pressure (dB-A): 52 / 52
Electrical Data:
Power supply: 230 V
Features:
Refrigerant gas: R32
Guaranteed operating range:
Cooling °C: -10 ~ +43
Heating °C: -15 ~ +24
Dimensions:
Indoor unit HxWxD (mm): 302 x 1120 x 236 ; 14 kg
Outdoor unit HxWxD (mm): 996 x 980 x 370 ; 83 kg
Product code: KIT-100PK3Z5
From July 25, 2019, under Decree 146/2018, companies that sell fluorinated gases and equipment not hermetically sealed that contain them must report information about sales to the Chamber of Commerce electronically.
The decree aims to track sales of such gases to reduce emissions.
Presidential Decree 146/2018 stipulates that at the time of sale, the buyer must declare whether they are purchasing as a certified installer, distributor/wholesaler, or end user.
For more information and to download the necessary forms, please visit the dedicated page on our website at the following link:
.acquisto-climatizzatori
