Descrizione

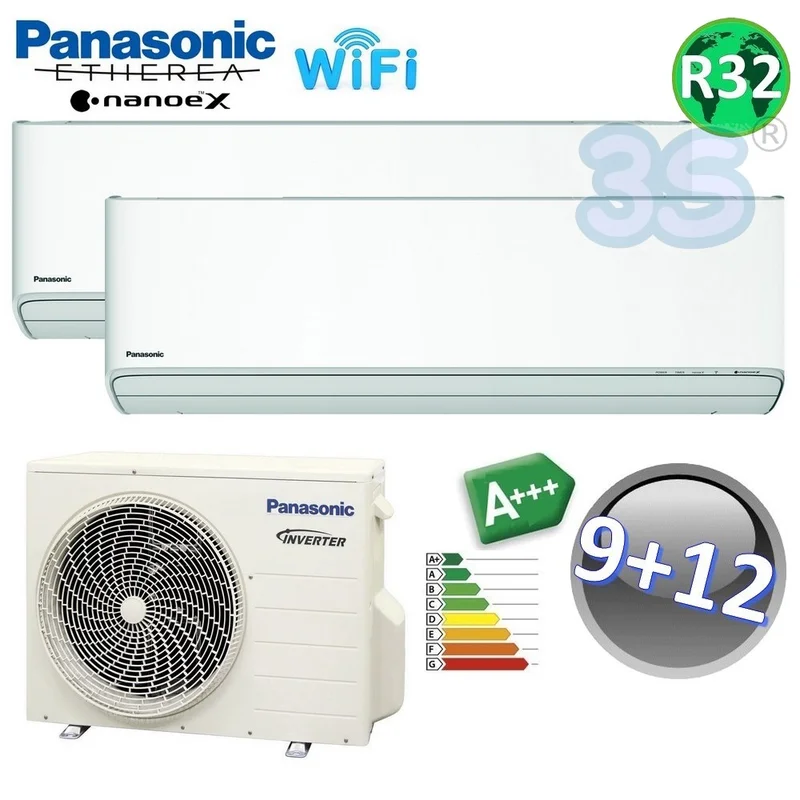

PANASONIC ETHEREA R32 dual split air conditioner 9000+12000 btu A+++ with WIFI NanoeX General features:
High-efficiency Dual Split system with Inverter technology and eco-friendly R32 refrigerant
Panasonic ETHEREA indoor units with NanoeX air purification technology
Integrated Wi-Fi control for remote management via app
Heat pump operation for year-round cooling and heating
A+++ energy class in cooling for reduced consumption
Modern, silent design optimized for residential environments
Model:
Series: Panasonic ETHEREA R32
Indoor unit model and Btu: CS-Z25CKEW 9000 BTU / CS-Z35CKEW 12000 BTU
Outdoor unit model: CU-2Z41CBE
Type: Inverter Dual Split Heat Pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 9,10 / 4,80
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 158 (cooling) / 1021 (heating)
Performance:
Cooling Capacity (kW): 4,10 (min 1,50 max 5,20)
Heating Capacity (kW): 4,60 (min 1,10 max 7,00)
Indoor unit Sound Pressure MAX-MIN (dB(A+1): CS-Z25CKEW: 41 / 21 CS-Z35CKEW: 44 / 21
Outdoor unit Sound Pressure MAX-MIN (dB(A+1): 48 / 50
Cooling input power kW: 0,94 (min 0,25 max 1,37)
Heating input power kW: 0,93 (min 0,21 max 1,79)
Electrical data:
Power supply ( / V /Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 (quantity 1,18 kg CO eq. 0,797 t)
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Max air flow (Power) m³/min: data not specified
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: up to 30 m (total range 630 m)
Maximum level difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10~+46 °C / Heating -15~+24 °C
Dimensions and weight:
Indoor Unit without packaging HxWxD (mm) and weight (Kg) without packaging: CS-Z25CKEW: 295 × 870 × 229 mm 10 kg CS-Z35CKEW: 295 × 870 × 229 mm 11 kg
Outdoor Unit dimensions HxWxD (mm) and weight (Kg) without packaging: 619 × 824 × 299 mm 37 kg
Product code: ETHEREA-X-R32-Z2535(41)
