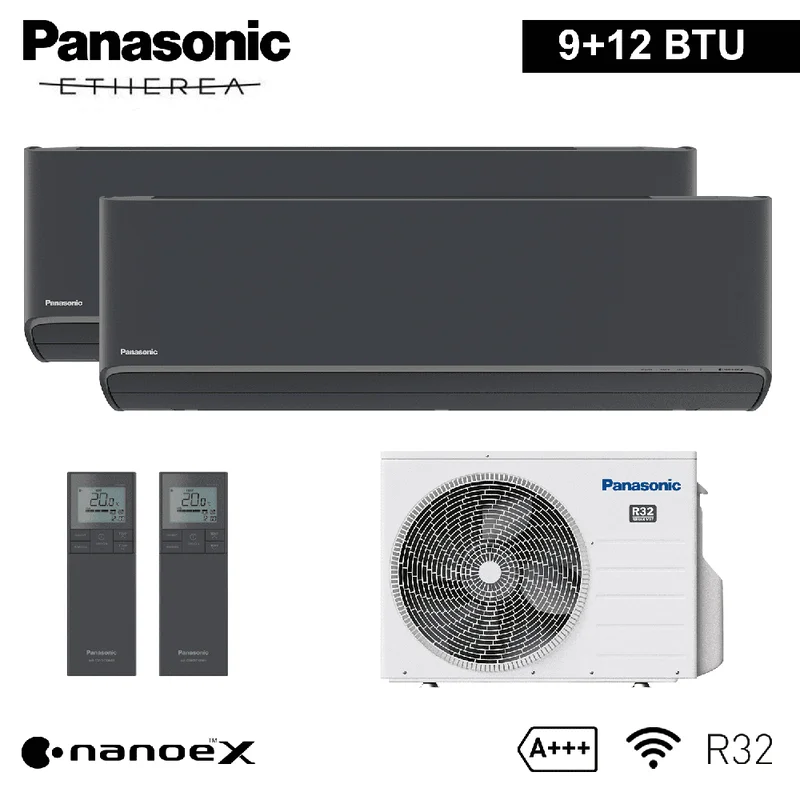

Panasonic ETHEREA GRAPHITE GREY dual split air conditioner 9000+12000 btu A+++ WIFI NanoeX General features:
Dual split system with two ETHEREA graphite grey indoor units, 9000 and 12000 BTU, ideal for air conditioning two rooms with a single outdoor unit.
nanoe X technology to improve air quality 24 hours a day, helping reduce odours and some pollutants present in indoor environments.
A+++ cooling energy efficiency class with SEER up to 9.10, for high comfort with low consumption.
Indoor units compatible with Internet connection and voice control, for smart management via app and voice assistants.
Elegant wall-mounted design in graphite grey finish, designed to blend into modern and premium interiors.
Quiet operation with indoor sound pressure down to 21 dB(A) in ultra-quiet mode, for excellent acoustic comfort.
Compact Free Multi outdoor unit that reduces space requirements and simplifies installation, with wide piping connection flexibility.
The PDF shows that the nominal cooling capacity of the 3.5 kW indoor unit is 3.50 kW and the nominal heating capacity is 4.50 kW, with sound pressure 44/30/21 – 45/35/21 dB(A), data used for this configuration.
The Free Multi outdoor unit PDF shows for model CU-2Z41CBE a SEER of 9.10 A+++ and a SCOP of 4.80 A++, values that define the high seasonal efficiency of the system.
Model:
Series: Panasonic ETHEREA with nanoe X Free Multi R32
Indoor unit model and Btu: CS-XZ25KEW-H ( 2.5 kW, 9000 BTU) + CS-XZ35KEW-H ( 3.5 kW, 12000 BTU) technically derived from models CS-Z25CKEW and CS-XZ35CKEW-H shown in the official PDFs.
Outdoor unit model: CU-2Z41CBE (Free Multi R32 system for 2 indoor units).
Type: R32 multisplit inverter heat pump for residential heating and cooling.
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 9.10 SCOP 4.80 (values referring to CU-2Z41CBE outdoor unit in Free Multi configuration).
Energy Efficiency Class (Cooling): A+++.
Energy Efficiency Class (Heating): A++.
Seasonal energy consumption kWh/year: 158 kWh/year in cooling and 1021 kWh/year in heating (CU-2Z41CBE data).
Performance:
Cooling capacity (kW): 4.10 kW total nominal (CU-2Z41CBE outdoor unit in cooling mode).
Heating capacity (kW): 4.60 kW total nominal (CU-2Z41CBE outdoor unit in heating mode).
Indoor unit sound pressure MAX-MIN (dB(A+1): from 45 dB(A) (Hi) down to 21 dB(A) (Q-Lo), considering the two ETHEREA 2.5 kW and 3.5 kW indoor units.
Outdoor unit sound pressure MAX-MIN (dB(A+1): about 5048 dB(A) in cooling/heating operation (CU-2Z41CBE values: 48/50 dB(A) cold/hot in Hi mode).
Cooling power input kW: 0.94 kW nominal (CU-2Z41CBE).
Heating power input kW: 0.93 kW nominal (CU-2Z41CBE).
Heating capacity guaranteed down to low outdoor temperatures, with heating operation down to -15 °C (CU-2Z41CBE operating limits).
Electrical data:
Power supply ( / V /Hz): 1 / 230 / 50 (single-phase 230 V power supply, 50 Hz frequency, derived from European residential supply standards and the voltage value shown in the PDF).
Technical specifications:
Refrigerant gas: R32.
Liquid / gas pipe diameter (inches): 1/4″ (6.35 mm) liquid / 3/8″ (9.52 mm) gas (for CU-2Z41CBE and ETHEREA 2.5 and 3.5 kW indoor units).
Maximum piping length with standard charge: 20 m of total pre-charged piping (CU-2Z41CBE).
Maximum piping length with additional charge: up to 30 m total length (range 630 m for CU-2Z41CBE, with additional gas quantity of 15 g/m over 20 m).
Maximum height difference (outdoor unit above): 10 m (indoor/outdoor elevation difference for CU-2Z41CBE).
Operating limits (outdoor temperature): cooling from -10 °C to +46 °C; heating from -15 °C to +24 °C (CU-2Z41CBE).
Dimensions and weight:
Indoor unit without packaging HxWxD (mm) and weight (Kg): each 2.5 kW and 3.5 kW ETHEREA unit measures about 295 x 870 x 229 mm; weight 10 kg (2.5 kW) and 11 kg (3.5 kW) according to the data shown in the PDF.
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 619 x 824 x 299 mm; weight 37 kg (CU-2Z41CBE).
Product code: ETHEREA-XZH-R32-Z2535(41)
