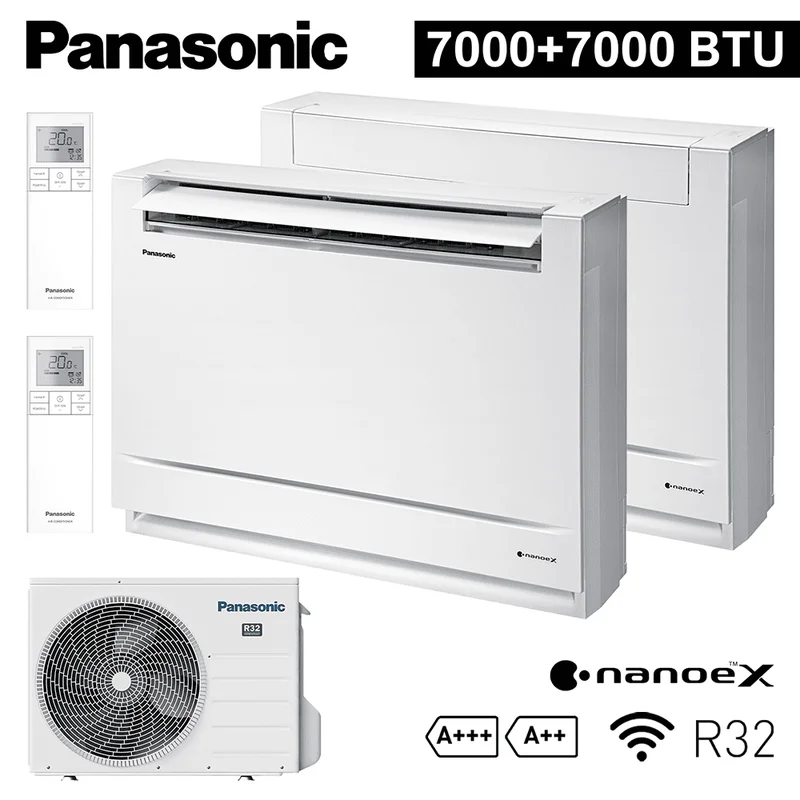

PANASONIC dual floor console air conditioner 7+7 A+++/A++ with NanoeX General features:
Dual split floor console air conditioner with high energy efficiency
NanoeX technology for improved air quality
Compact indoor units with quiet operation
Heat pump with high performance even at low temperatures
Eco-friendly R32 refrigerant
Flexible installation with a wide piping length range
A+++ energy class in cooling and A++ in heating
Model:
Series: Panasonic Floor Console
Indoor unit model and Btu: CS-MZ20UFEA 2,0 kW (approximately 7,000 BTU) x 2
Outdoor unit model: CU-2Z41CBE
Type: Inverter multisplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 9,10 SCOP 4,80
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 158 kWh/a (cooling) 1021 kWh/a (heating)
Performance:
Cooling Capacity (kW): 4,10 (outdoor unit) 2,00 (indoor unit)
Heating Capacity (kW): 4,60 (outdoor unit) 3,20 (indoor unit)
Indoor unit Sound Pressure MAX-MIN (dB(A)): 39 / 27 / 22 (cooling) 39 / 27 / 21 (heating)
Outdoor unit Sound Pressure MAX-MIN (dB(A)): 50 / 48
Cooling input power kW: 0,94
Heating input power kW: 0,93
Heating capacity at -7 °C: 4,18 kW
Electrical data:
Power supply ( / V / Hz): 1 / 230 V / 50 Hz
Technical specifications:
Refrigerant gas: R32 1,18 kg (CO Eq. 0,797 T)
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Max air flow (Power) m³/min: data not specified
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: up to 30 m total (15 g/m additional)
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10~+46 °C / Heating -15~+24 °C
Dimensions and weight:
Indoor Unit without packaging HxWxD (mm) and weight (Kg): 600 × 750 × 207 mm 13 kg
Outdoor Unit dimensions HxWxD (mm) and weight (Kg) without packaging: 619 × 824 × 299 mm 37 kg
Product code: KIT-FEA-2020(41)
