Descrizione

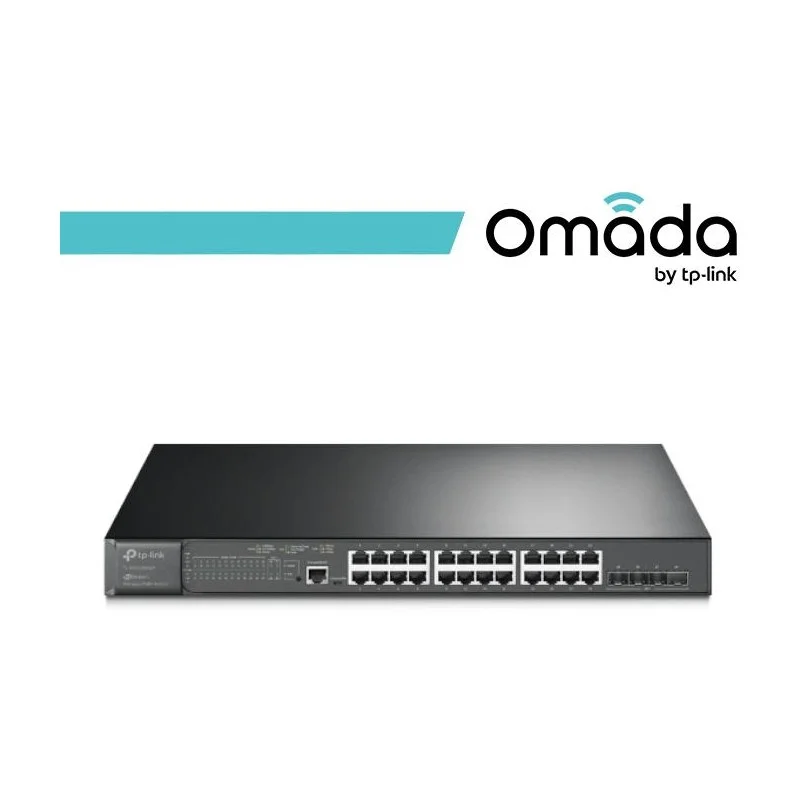

OMA-SG3428XMP – Switch Managed L2+ con 24 Porte Gigabit PoE+ e 4 slot SFP+ 10GE | JetStream by Omada
Uplink SFP 10 GE – 4 slot SFP+ 10Gbps per connessioni ad alta velocità.
Switch Gigabit – 24 porte Gigabit LAN PoE+.
Power Budget PoE 384W – Le 24 porte PoE+ supportano gli standard 802.3at/af con power budget totale di 384W, fino a 30W per singola porta.*
L2 Static Routing – Il routing statico consente di ottimizzare le risorse di rete impostando percorsi di connessione interni predefiniti dall’amministratore.
Sicurezza avanzata – IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication e molto altro.
Ottimizzazione video/voce: Con funzionalità L2/L3/L4 QoS e IGMP snooping.
Gestione intuitiva standalone – Modalità gestite WEB, CLI (Console Port, Telnet, SSH), SNMP, RMON e Dual Image.
Dispositivo integrato Omada SDN* – La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
App Omada – L’intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
| 24× 10/100/1000 Mbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
| 2 |
| 100-240 V AC~50/60 Hz |
| Standard: 802.3at/af compliant PoE+ Ports: 24 Ports, up to 30 W per port Power Budget: 384 W |
| 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Rack Mountable |
| 34.4 W (110V/60Hz) ( no PD device connected) 465.8 W (110V/60Hz) ( with 384 W PD device connected) |
| 117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected) |
| 128 Gbps |
| 95.23 Mpps |
| 16 K |
| 9 KB |
| 8 priority queues 802.1p CoS/DSCP priority Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR Bandwidth Control – Port/Flow based Rating Limiting Smoother Performance Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect Loopback Detection – Port based – VLAN based Flow Control – 802.3x Flow Control – HOL Blocking Prevention Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication IGMP Authentication MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast MVR Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN Group – Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ Voice VLAN |
| Time-based ACL MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority Combined ACL Packet Content ACL IPv6 ACL Policy – Mirroring – Redirect – Rate Limit – QoS Remark ACL apply to Port/VLAN |
| IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries DoS Defend Static/Dynamic Port Security – Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| 16 IPv4/IPv6 Interfaces Static Routing – 48 static routes Static ARP – 128 Static Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay DHCP L2 Relay |
| Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)** |
| MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB |
| CE, FCC, RoHS |
| TL-SG3428XMP Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
| Operating Temperature: 045 (32113 ); Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
