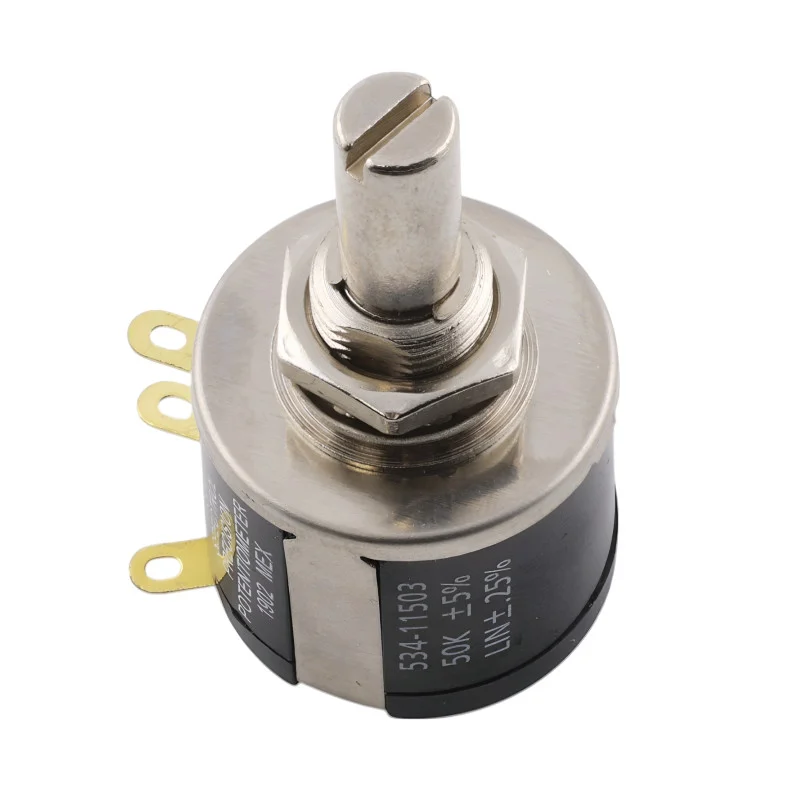

Multi-turn potentiometer 5341-1XXX, Vishay Spectrol-Spedizione veloce

Descrizione

The high-precision industrial potentiometer series 534 from Vishay Spectrol is designed for fine and repeatable resistance adjustment in measuring instruments, automation systems and audio technology. Thanks to its ten-turn design and robust construction, it is ideal for demanding professional applications.

Technical specifications

Resistance: 100 to 100 k (depending on variant)

Resistance tolerance: ±5%

Type: wirewound, linear characteristic

Number of turns: 10 (3600°)

Power load: 2 W at 70 °C

Temperature coefficient: approx. 20 ppm/°C

Operating temperature: 55°C to +125°C

Shaft diameter: 6.35 mm (1/4), metal, with screwdriver slot

Shaft length: approx. 20.6 mm

Body diameter: 22.2 mm

Mounting hole: 10 mm, with 3/832 UNEF2A thread

Connection type: solder lug terminals

Insulation resistance: 1000 M at 500 VDC

Dielectric strength: 1000 VAC

Available resistance variants

Functions and features

Precision multi-turn potentiometer with fine adjustment

Robust metal shaft and body for long life

Stable output with low noise thanks to wired technology

Universal design suitable for panel or device mounting

Possibility to choose resistance according to the application (multiple variants)

Ideal for

Precision control in industrial automation

Measuring and calibration instruments

Analog audio technology (amplifiers, mixing consoles)

Laboratory and development facilities

Package contents

1× Vishay 53411XXX potentiometer (depending on the selected resistance variant)

Mounting nut and washer

Why choose this product?

High precision and smooth control thanks to 10-turn design

Durable design suitable even for demanding operations

Flexible resistance selection according to application needs

Easy installation in instrument panels

Long life and reliability from renowned manufacturer Vishay
