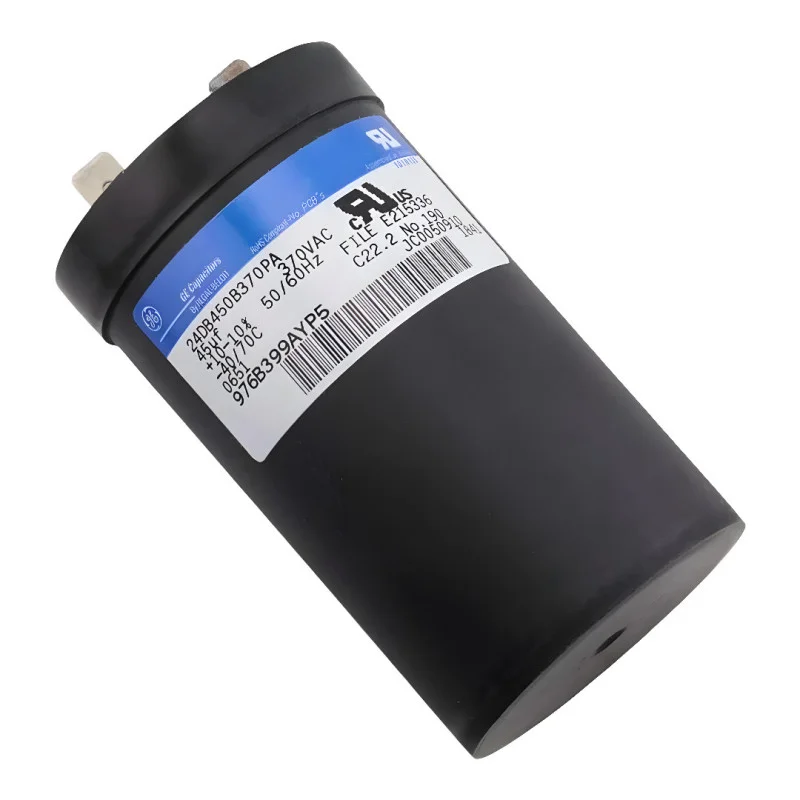

The GE 24DB450B370PA motor capacitor is a film capacitor designed for continuous operation in single-phase AC motors. It is mainly used as a run capacitor in compressors, fans and pumps in air conditioning, refrigeration and ventilation equipment. It ensures the correct phase of the motor winding power supply throughout its operation.
Technical specifications
Model number: 24DB450B370PA
Brand: GE
Capacity: 45uF
Capacity tolerance: ±10%
Rated voltage: 370 VAC
Frequency: 50/60Hz
Maximum operating temperature: 70 °C
Construction: film capacitor (metallized polypropylene)
Design: cylindrical housing
Connection: flat terminals (faston)
Dimensions: 45 x 80 mm
Functions and features
Designed for continuous operation in an AC motor circuit (motor run capacitor)
Metallized polypropylene dielectric exhibits self-healing properties in the event of local breakdown
Cylindrical housing ensures compact installation in control cabinets and motor housings
Flat terminals (faston) allow for quick and reliable connections without soldering
PCB-free and oil-free construction
Ideal for
Run capacitor of single-phase asynchronous motors
Compressors for air conditioning and refrigeration units
Ventilation system fans
Pumps and other equipment with single-phase AC motor
OEM replacement part for equipment requiring a 45 uF / 370 VAC capacitor
Package contents
1x GE 24DB450B370PA capacitor
Why choose this product?
Original GE part with precisely defined electrical parameters
Standard dimensions and connection type facilitate direct replacement during servicing
Film construction with metallized polypropylene ensures long life in continuous operation
Compatibility with both 50 and 60 Hz frequencies expands the range of applications
Installation and operating instructions
Before replacing the capacitor, disconnect the device from the power supply and short-circuit the capacitor terminals to discharge any residual charge.
When replacing, ensure that the nominal capacity and voltage match the original part.
Install the condenser in an environment where the operating temperature does not exceed 70 °C.
Entrust the installation and connection to a person with professional electrical qualifications.
Safety notice
The capacitor operates at 370 VAC – touching live voltage is life-threatening
Even after disconnecting from the mains, the capacitor may retain a dangerous electrical charge always perform a controlled discharge before handling.
Do not exceed the rated voltage or maximum operating temperature – there is a risk of damage or destruction of the capacitor
Do not use a capacitor with mechanical damage to the case or terminals.
Installation may only be carried out by a person with appropriate electrical qualifications.
