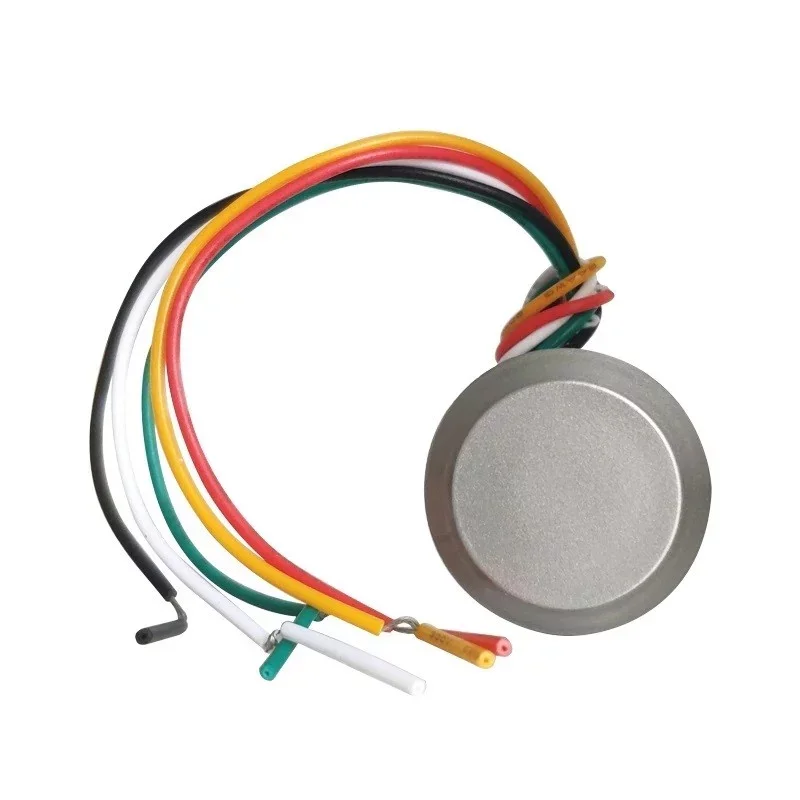

RFID reader, communication is via the standard Wiegand interface used for contactless card readers. This allows the reader to be connected up to 15m from the terminal. The reading distance is 2-6cm. The backlight is a red LED. No acoustic signaling.
Wiring:
Red (red): 12V DC
Black (black): GND
White (white): Wiegand DATA1
Green (green): Wiegand DATA0
Yellow (yellow): LED.
Output format: Wiegand 26
Working voltage: 12V DC (8-18V DC)
Operating current: max. 35mA
Working frequency: 125kHz
Reading speed: 200ms
working environment: -20 – 75°C, max. 90% humidity
size: 25x25x22mm
mounting hole: 20mm
