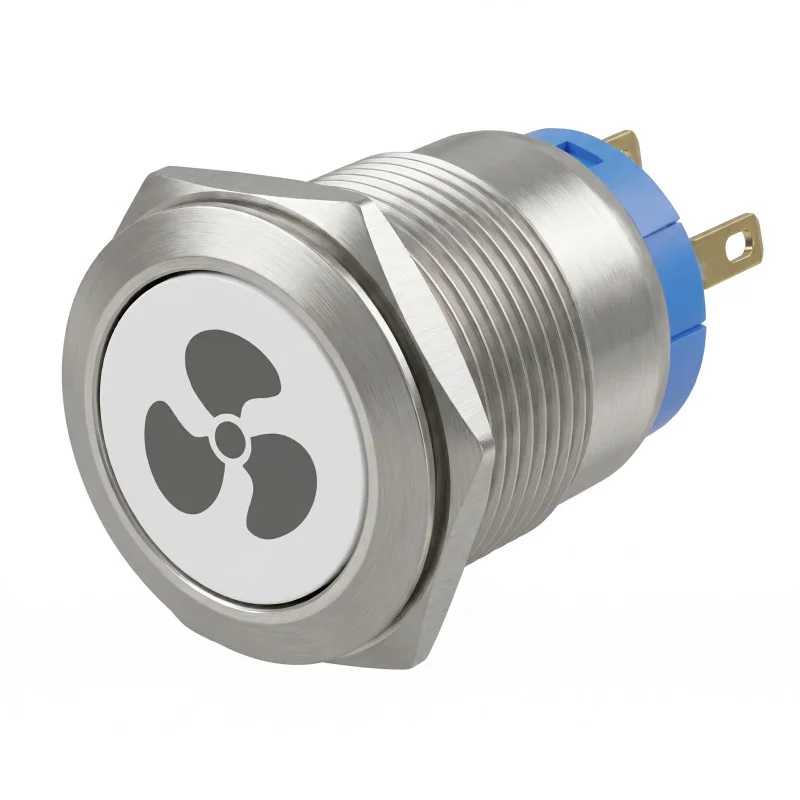

The metal panel switch with red LED backlight and fan symbol is designed for controlling electrical circuits in panels, switchboards, control cabinets, and custom electrical installations. The hole-mounting design allows for firm installation into the front panel and clear labeling of the controlled function.
Technical specifications
Product type: metal panel switch
Body color: silver
Backlight: red LED
Symbol on the button: fan
Switch diameter: 22 mm
Mounting diameter: 19 mm
Protection: IP65
Maximum LED backlight voltage: 12 V
Maximum switching voltage and current: 250 V / 5 A
Contact type: NO, NC
Switching: latching
Dimensions: 2.2 cm x 2.2 cm x 3.9 cm
Functions and features
The switch combines mechanical control of an electrical circuit and visual signaling using a red LED backlight.
NO and NC contacts allow connection as a making or breaking element according to the requirements of the specific application.
The latch holds the switch in the selected position after pressing.
The metal design is suitable for panel mounting into control elements and device covers.
IP65 protection provides protection against dust and water jets when properly mounted in a suitable panel.
The fan symbol facilitates the identification of the controlled function on the front panel.
Ideal for
Control panels of fans and ventilation systems.
Switchboards, control cabinets, and technical panels.
Custom electrical installation projects requiring a panel switch with backlight.
Applications where differentiation of the controlled function using a fan symbol is required.
Package contents
1x Metal switch with red LED backlight and fan symbol
Why choose this product
It contains a backlight that allows visual indication of the status or function according to the wiring.
It offers NO and NC contacts for wider wiring options in control circuits.
The panel design with a mounting diameter of 19 mm allows installation into a prepared hole.
IP65 protection supports use in environments with increased demands on the protection of the control element.
The fan symbol reduces the risk of confusing the controlled function in the panel.
Installation and operation instructions
Before installation, verify the compliance of the LED backlight voltage, switching voltage, current, and contact type with the specific wiring.
Install the switch into a panel with a corresponding mounting hole.
Wire the NO and NC contacts according to the required function of the controlled circuit.
To maintain IP65 protection, the switch must be properly seated and tightened in a panel of suitable construction.
Installation into electrical equipment may only be performed by a person with appropriate electrical qualifications.
Safety warnings
The product can be used in circuits with a switching voltage of up to 250 V, therefore there is a risk of electric shock in case of improper handling.
Always disconnect the device from the power supply before assembly, disassembly, or modification of the wiring.
Do not exceed the maximum switching voltage and current specified in the specifications.
Do not connect the LED backlight to a higher voltage than specified in the specifications.
Incorrect wiring can cause a short circuit, overheating, damage to the switch, or damage to the connected device.
