Manual reset low pressure switch for heating systems, threaded connection G 1/4 female-Spedizione veloce

Descrizione

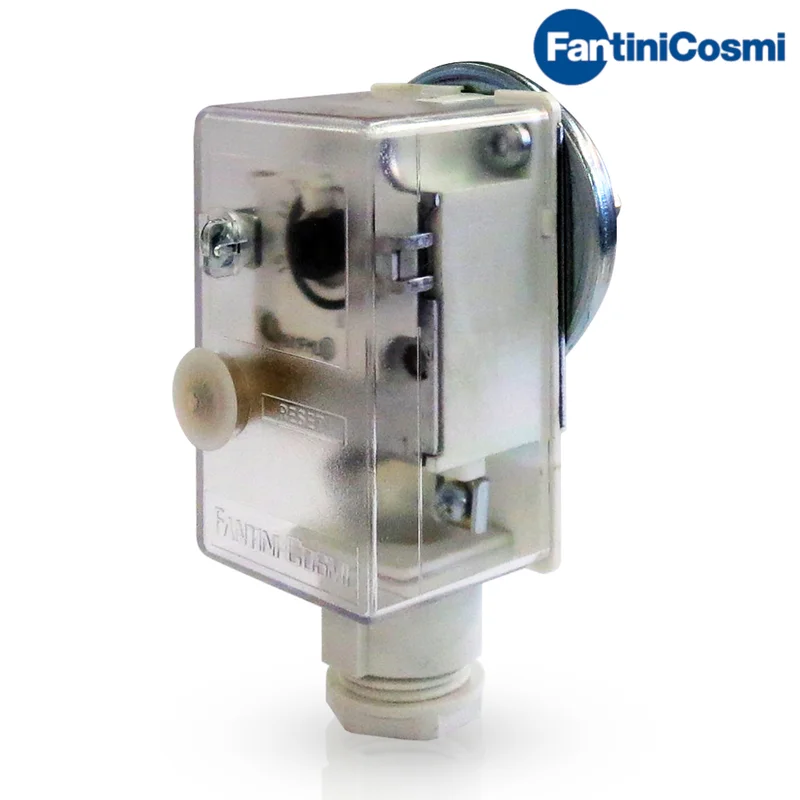

Low pressure switch with manual reset for heating systems, threaded connection G 1/4” female
Description:
Low pressure switch with manual reset and safety feature, suitable for heating systems.
General features:
– Sensitive element with stainless steel membrane, laser-welded.
– Impact-resistant thermoplastic cover.
– Connection outlets with impact-resistant and self-extinguishing thermoplastic cable gland.
– Maximum fluid temperature: 120°C.
– Maximum switch body temperature: -35 to 80°C.
– Storage and transport temperature: -35 to 80°C.
– Unit weight: 0.15 kg.
Electrical features:
– Snap-action microswitch with manual reset and silver alloy contacts.
– Contact rating according to EN 60730-1: 15(6)A 250V~ 50Hz.
– Rating according to EN 60947-5-1.
– Nominal insulation voltage Ui: 380V~.
– Continuous service current Ith: 15A.
– Nominal operating current Ie: 220V-250V~ 380V~.
– Resistive load AC-12: 15A 10A.
– Inductive load AC-15: 2.5A 1.5A.
– DC-13 current: 0.2A.
Product code: B01FML
