Descrizione

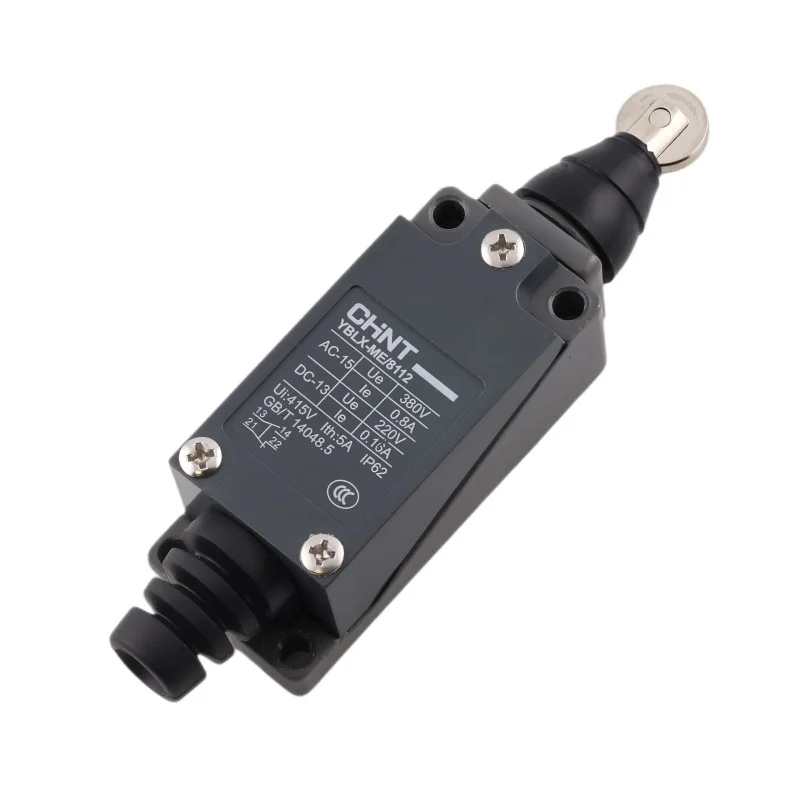

The CHND YBLX-ME/8112 limit switch is an electromechanical position switch with a straight roller designed for end position sensing and positional motion control in industrial applications. It is used for reliable end-of-travel signaling, motion blocking, and sequence control of machine mechanisms.
Technical specifications
Model: YBLX-ME/8112
Control head type: straight roller
Contacts: 1NO + 1NC
Maximum operating force (OF): 20 N
Maximum working stroke (PT): 5 mm
Minimum stroke difference (OT): 2 mm
Rated insulation voltage (Ui): 380 V
Utilization category AC-15: Ue 380 V, Ie 0.8 A
Utilization category DC-13: Ue 220 V, Ie 0.2 A
Protection level: IP62
Body dimensions: height 120 mm (max), width 28.5 mm (max), depth 28 mm (max)
Mounting spacing: 56 mm
Mounting holes: 2x Ø4.1 mm
Threads for mounting/components: 2x M5
Pulley diameter: Ø13 mm
Functions and features
Mechanical control with a straight roller for sensing the movement of cams, stops and sliding parts
Combination of normally closed and normally open contact (1NC + 1NO) for control and signaling
Compact metal design suitable for industrial environments
Suitable for control circuits in categories AC-15 and DC-13
Ideal for
End positions of linear and rotary mechanisms
Industrial machines, conveyors, packaging and assembly equipment
Position signaling in automation and machine control
Applications where mechanical travel sensing is required
Package contents
Limit switch CHINT YBLX-ME/8112
Why choose this product?
Standardized limit switch design for industrial use
1NO + 1NC contacts allow flexible wiring in control circuits
Mechanical design with straight roller is suitable for repeated position sensing
Clearly defined electrical usage categories AC-15 and DC-13
Installation and operating instructions
Mount the switch on a solid surface and ensure that the control element is loaded in the prescribed direction of movement of the mechanism.
When connecting, verify the function of the 1NO and 1NC contacts and select the correct terminals according to the required control logic.
Provide suitable mechanical stops to prevent excessive stress on the controller.
Safety notice
Installation and connection should only be carried out with the power supply disconnected and by a qualified person.
In circuits with hazardous voltages, improper installation can cause electric shock or damage to the equipment.
Follow the application requirements for fuses and protection against short circuits and overloads.
