Descrizione

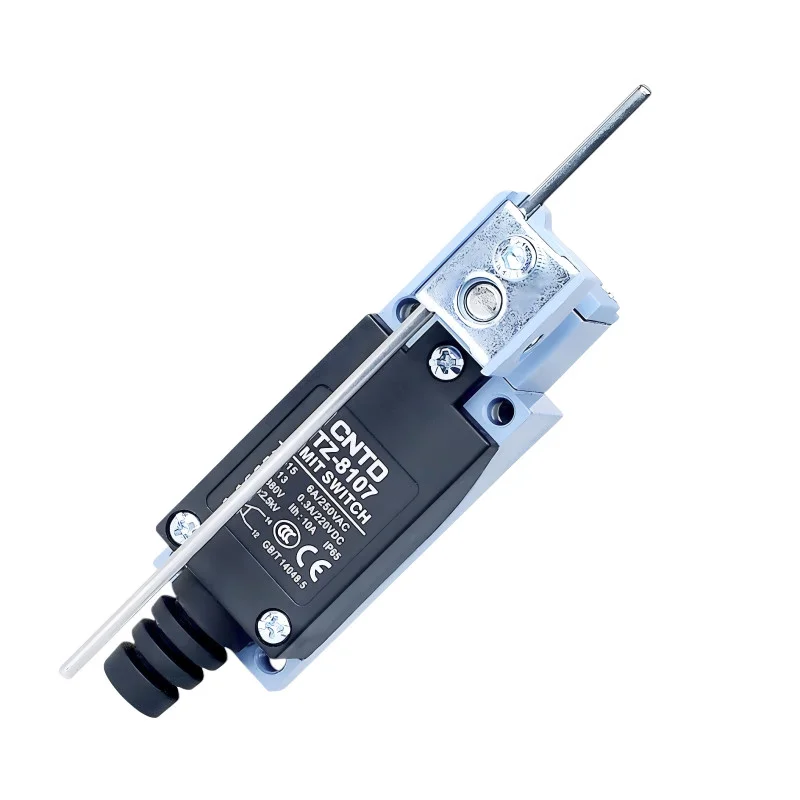

The CNTD TZ-8107 limit switch from the TZ-8 series is an industrial mechanical limit switch with a direct actuator in the form of a solid metal rod. This design is designed for precise detection of position and mechanical stops where direct and unambiguous contact without elastic overhang is required. Thanks to its robust construction and high mechanical resistance, it is suitable for continuous operation in demanding industrial applications.
Technical specifications
Type: mechanical limit switch
Model: TZ-8107
Controller: solid metal rod
Contact arrangement: 1× NO + 1× NC (double circuit)
Operating speed: 5 mm/s to 0.5 m/s
Contact resistance: max. 25 m
Insulation resistance: min. 100 M (at 500 VDC)
Dielectric strength: 1500 VAC / 1 minute
Mechanical life: 1,000,000 cycles
Electrical life: more than 500,000 switching cycles
Operating temperature: -20°C to +70°C
Relative humidity: 95% RH
Protection: IP65
Dimensions: 29 × 27 × 129 mm
Weight: 180g
Rated voltages and currents
| Resistive (AC) | 125VAC | 5 A | 5 A |
| 250VAC | 5 A | 5 A | |
| Resistive (DC) | 830 VDC | 5 A | 5 A |
| 125 VDC | 0.4A | 0.4A | |
| 250 VDC | 0.2A | 0.2A | |
| Induction (AC) | 125VAC | 3 A | 3 A |
| 250VAC | 3 A | 3 A | |
| Inductive (DC) | 830 VDC | 4 A | 4 A |
| 125 VDC | 3 A | 3 A | |
| 250 VDC | 3 A | 3 A | |
| Surge current | 12 A | 24 A |
Functions and features
Solid metal rod for precise and repeatable movement transmission
High mechanical resistance without elastic overhang
Double spring contact mechanism for long life
Aluminum alloy and reinforced plastic construction
Water, dust and oil resistant (IP65)
Stable electrical parameters for both AC and DC circuits
Ideal for
Industrial automation
Conveyor and positioning systems
CNC machines and machining centers
Assembly and packaging lines
Precise detection of end positions and mechanical stops
Package contents
Limit switch CNTD TZ-8107
Why choose this product?
Accurate and clear specification of rated voltages and currents
Robust design suitable for industrial environments
Long mechanical and electrical life
Reliable solution for demanding applications
Proven quality of the CNTD TZ-8 series
