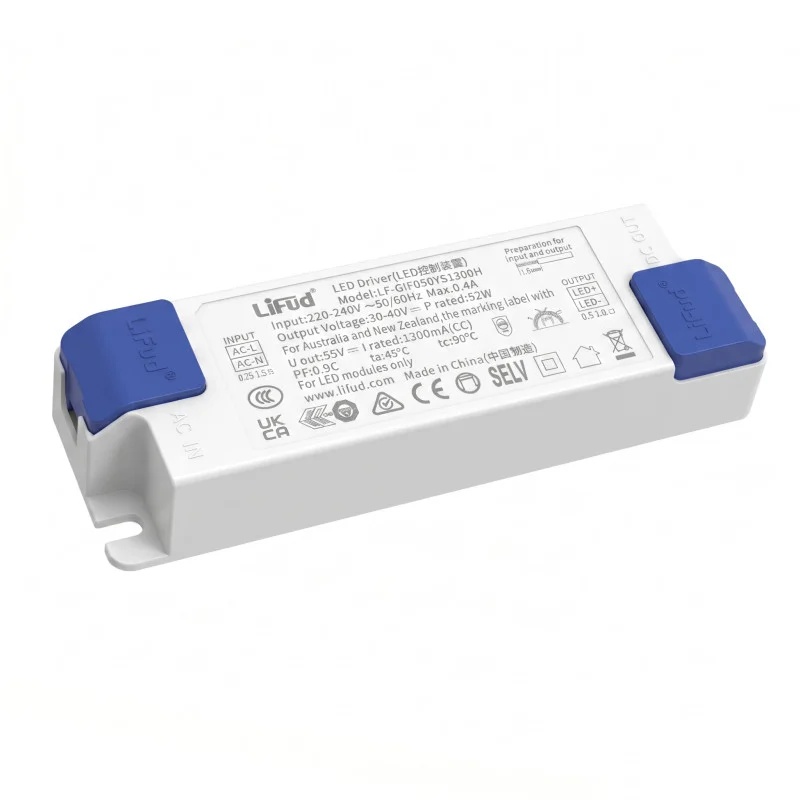

The LiFud LF-GIF050YS1300H is an isolated constant current LED driver designed for powering LED luminaires from a 220240 V AC mains supply. It provides a stabilized output of 1300 mA within a voltage range of 3040 V DC and is intended for indoor lighting applications, particularly LED panels, Class II luminaires, and decorative lighting.
Technical Specifications
Product type: Isolated constant current LED driver
Output power: 52 W
Output current: 1300 mA
Output voltage: 3040 V DC
Input voltage: 220240 V AC
Input voltage limit range: 198264 V AC
Input frequency: 4763 Hz
Maximum input current: 0.4 A
Power factor: 0.95 at 230 V AC
THD: 20% at 230 V AC
Efficiency: 88% at 230 V AC
Output current tolerance: ±5%
Temperature drift: ±10%
Turn-on time: 0.5 s
Flicker index: Complies with IEEE 1789
CIE SVM: 0.4
IEC-Pst: 1.0
Leakage current: 0.7 mA
Standby power consumption: 0.5 W
Open circuit protection: 55 V
Short circuit protection: Hiccup mode with automatic recovery
Operating temperature: -30 to +45 °C
Operating humidity: 095% RH non-condensing
Storage temperature: -30 to +80 °C
Storage humidity: 096% RH non-condensing
Atmospheric pressure: 86106 kPa
Dimensions: 140 × 44 × 30 mm
Housing material: ABS plastic
Certifications: ENEC, RCM, CE, CB, CCC
Test isolation voltage between input and output: 3.75 kV, 5 mA, 60 s
Insulation resistance between input and output: 100 M at 500 V DC
Features and Properties
Constant current output for LED loads with an operating range of 3040 V DC.
Isolated design separates the input mains section from the LED output.
Protective earth-free design intended for use in Class II luminaires.
Short circuit protection operates in hiccup mode with automatic recovery after fault removal.
Open circuit protection limits output voltage when the LED load is disconnected.
Low-ripple luminous flux design complies with IEEE 1789 requirements.
Plastic housing with mounting holes allows firm attachment inside the luminaire or installation space.
Ideal For
LED panels with a matching current and voltage range.
Indoor LED luminaires powered by a constant current.
Decorative interior lighting.
Class II luminaires requiring an isolated LED driver.
Service replacement of an LED driver with identical electrical parameters.
Package Contents
1× LiFud LED driver
Why Choose This Product
The 1300 mA output current and 3040 V DC range allow use with LED modules matching these parameters.
The isolated design is suitable for electrically separated LED load power supplies.
Integrated short circuit and open circuit protections reduce the risk of damage during fault conditions.
Dimensions of 140 × 44 × 30 mm make it easy to assess fitment when replacing in an existing luminaire.
The listed safety and EMC certifications support its use in lighting applications requiring verified power components.
Installation and Operating Instructions
Before installation, verify the compatibility of the 1300 mA output current and 3040 V DC voltage range with the used LED load.
Connect the LED load with the correct polarity to the driver’s output terminals.
Install the driver in a non-condensing environment away from sources of excessive heat.
Perform the installation so that the supply wires are not strained and proper operating heat dissipation is ensured.
The product is intended for professional installation by a person with appropriate electrical qualifications.
Safety Warnings
The device operates on 220240 V AC mains voltage; improper handling may cause an electric shock.
Perform installation, replacement, and inspection only when the power supply is disconnected.
Do not connect the driver to an LED load with an incompatible current or voltage range.
Do not cover the driver with materials that could impair heat dissipation.
Do not use the product if the housing, wires, or terminals are mechanically damaged.
The driver is not intended for operation in humid environments with condensation.
