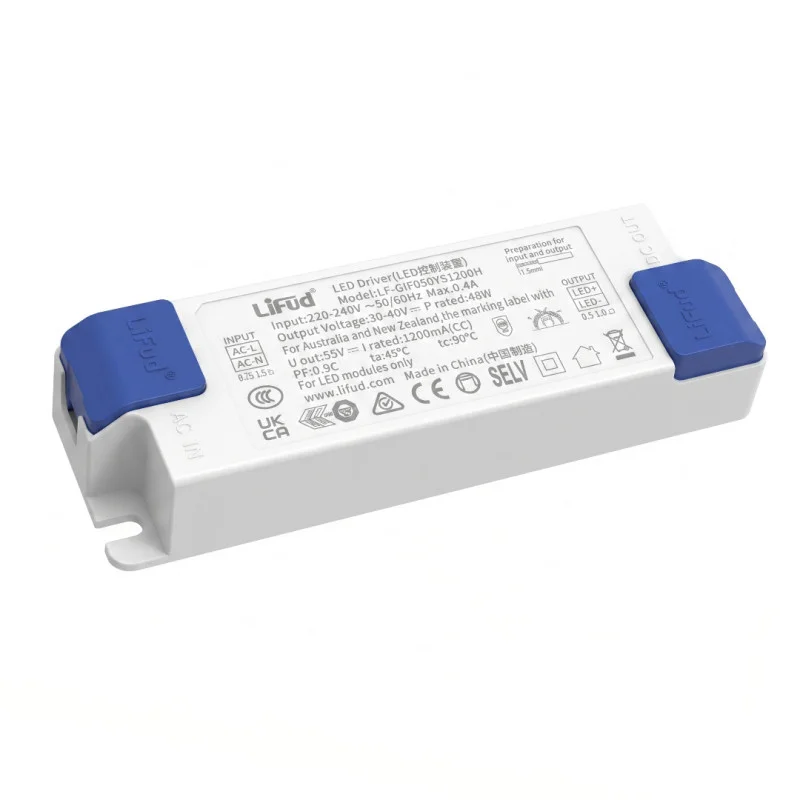

The LiFud LF-GIF050YS1200H is an isolated LED driver for powering LED luminaires with a constant current. It is designed for 220-240 V AC mains supply and an output current of 1200 mA. The product is suitable for applications requiring a stable power supply for LED panels or luminaires within the corresponding current and voltage range.
Technical Specifications
Manufacturer: LiFud
Product type: Constant current LED driver
Design: Isolated driver
Rated power: 48 W
Input voltage: 220-240 V AC
Input voltage range: 198-264 V AC
Input frequency: 47-63 Hz
Maximum input current: 0.4 A
Output current: 1200 mA
Output voltage: 30-40 V DC
Efficiency: 88% at 230 V DC
Power factor: 0.95 at 230 V AC
THD: 20% at 230 V AC
Flicker index: Complies with IEEE 1789
CIE SVM: 0.4
IEC-Pst: 1
Output current tolerance: ±5%
Temperature drift: ±10%
Start-up time: 0.5 s
Inrush current: 35 A and 180 µs at 230 V AC
Leakage current: 0.7 mA
Standby power consumption: 0.5 W
No-load protection:
Short circuit protection: Hiccup mode with auto-recovery
Operating temperature: -30 to +45 °C
Operating humidity: 0-95% RH non-condensing
Storage temperature: -30 to +80 °C
Atmospheric pressure: 86-106 kPa
Dimensions: 140 x 44 x 30 mm
Certifications: ENEC, RCM, CE, CB, CCC
Insulation strength: I/P-O/P 3.75 kV, 5 mA, 60 s
Insulation resistance: I/P-O/P>100 M at 500 V DC
Features and Properties
Powers LED loads with a constant current of 1200 mA.
Isolated design between input and output sections.
Output range of 30-40 V DC for LED loads matching this operating range.
Flicker-free design compliant with IEEE 1789.
Integrated short circuit protection with auto-recovery.
No-load protection.
Designed for indoor use.
Suitable for Class II protection luminaires.
Ideal For
LED panel lights with a constant current of 1200 mA.
Indoor LED lighting.
Decorative LED lighting.
Service replacement of an LED driver with matching electrical parameters to the original power supply.
Luminaires where a reduction in visible flickering is required.
Package Contents
1 x LED driver
Why Choose This Product
Specific model with a 1200 mA output and a 30-40 V DC voltage range.
Technical parameters match the requirements for constant current LED luminaires.
The driver features short circuit and no-load protection.
Isolated design with specified insulation strength between input and output.
Listed certifications: ENEC, RCM, CE, CB, and CCC.
Installation and Operating Instructions
Installation must only be carried out by a qualified electrician.
Before connecting, verify that the output current and voltage range match the connected LED load.
Connect input and output wires only when the mains power is disconnected.
The driver must be installed in an environment that meets the specified operating temperature and humidity ranges.
Do not cover the driver with materials that restrict heat dissipation.
Safety Warnings
The device operates on 220-240 V AC mains voltage; improper handling may result in electric shock.
Always disconnect the power supply and verify there is no voltage before installation, replacement, or inspection.
Do not use the driver with an LED load outside the specified range of 30-40 V DC and 1200 mA.
Incorrect wiring may cause damage to the driver and LED load, resulting in a short circuit or overheating.
Do not use the driver in environments with condensing humidity.
