Descrizione

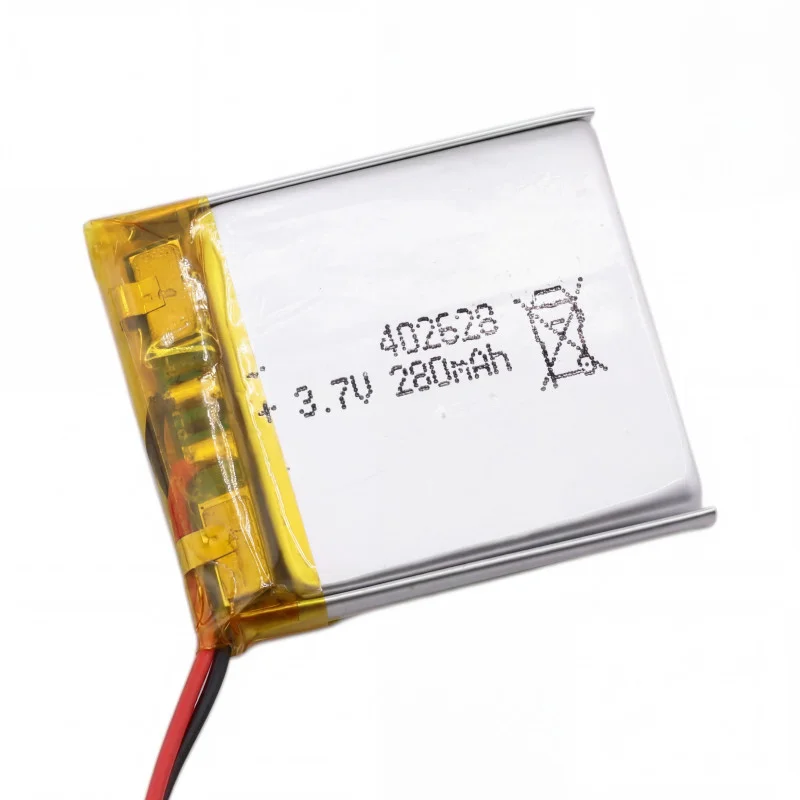

Li-Pol battery 402628 is a rechargeable lithium-polymer battery designed to power small electronic devices. The product is suitable for applications requiring a compact flat design, low supply voltage and integration into portable electronics.
Technical specifications
Battery type: lithium polymer battery (Li-Pol)
Article number: 402628
Rated voltage: 3.7 V
Capacity: 280mAh
Dimensions: 28x26x4 mm
Design: flat element
Connection: wire terminals without connector
The polarity of the wires is marked on the cell.
Functions and features
Rechargeable battery for repeated use
Flat design suitable for installation in compact devices
Lead wires allow electrical connection to devices or battery management
Suitable for devices designed to be powered by a single Li-Polymer cell with a nominal voltage of 3.7 V
Ideal for
small portable electronic devices
built-in power supply for compact modules
service battery replacement in devices using cells of the same designation and the same electrical parameters
projects requiring a flat rechargeable battery
Package contents
1x Li-Po battery 402628
Why choose this product?
clearly marked basic electrical parameters directly on the cell
Compact flat design for devices with limited installation space
Rechargeable design suitable for repeated use
Lead wires facilitate integration into compatible equipment
Installation and operating instructions
Before installation, verify that the cell designation, rated voltage, and capacity match the original battery or device requirements.
Observe the correct polarity of the connection.
For charging, use only a charging circuit designed for Li-Pol batteries.
Do not install the battery in a device that is not designed to operate with a single 3.7 V Li-Pol cell.
Safety notice
The Li-Pol battery must not be short-circuited, punctured, deformed or subjected to mechanical damage.
Do not use if the packaging is damaged, the cell is swollen, or the wires are damaged.
Charge only with a suitable charger or charging circuit for lithium-polymer batteries.
Do not expose to high temperatures, open flames or direct overheating.
Improper connection or charging may cause overheating, damage to the cell, or fire.
