Descrizione

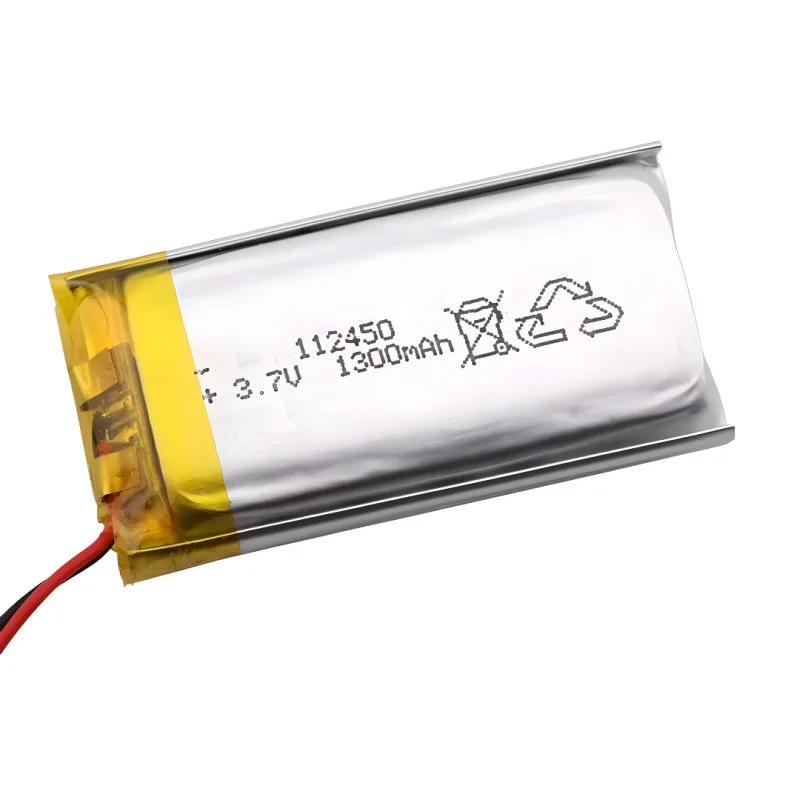

Lithiumpolymer (Li-Pol) rechargeable battery type 112450 is designed to power portable electronic devices such as mobile devices, embedded systems, measuring equipment, RC models or other compact electronics. Thanks to its flat design, it allows easy integration into devices with limited space. The battery has no memory effect and allows multiple cells to be connected in series according to the required voltage.
Technical specifications
Battery type: Lithiumpolymer (Li-Pol)
Type designation: 112450
Rated voltage: 3.7V
Capacity: 1300mAh
Capacity: 4.81Wh
Charging voltage: 3.7-4.2 V DC
Discharge current: 1C (1.3A)
Number of charging cycles: 2000
Minimum self-discharge: approx. 5% per month
Working temperature: -10 to 50 °C
Dimensions: 50 × 24 × 11 mm (length × width × thickness)
Functions and features
Flat design suitable for compact devices
No memory effect
Possibility of series and parallel connection while maintaining proper protection
Stable discharge characteristics
Suitable for repeated long-term use
Ideal for
Portable electronics
Embedded and development modules
RC models
Measuring and diagnostic equipment
Custom electronic projects
Package contents
1× Li-Pol battery 112450 3.7 V / 1300 mAh
Why choose this product?
Balanced capacity and size ratio
High number of charging cycles
Low self-discharge during storage
Universal use in a wide range of applications
Installation and operating instructions
Charge only with a charger designed for Li-Pol cells with a terminal voltage of 4.2 V.
Do not short-circuit the terminals or exceed the recommended discharge current.
Do not operate if the voltage drops below 2.7 V – there is a risk of irreversible damage to the cell.
It is recommended to use a protective BMS module to ensure safe operation.
Safety notice
Do not expose to mechanical damage, deformation or puncture.
Do not overheat or expose to temperatures outside the specified range.
Avoid short-circuiting and overcharging the cell.
Do not use the battery if it is swollen or damaged.
