Descrizione

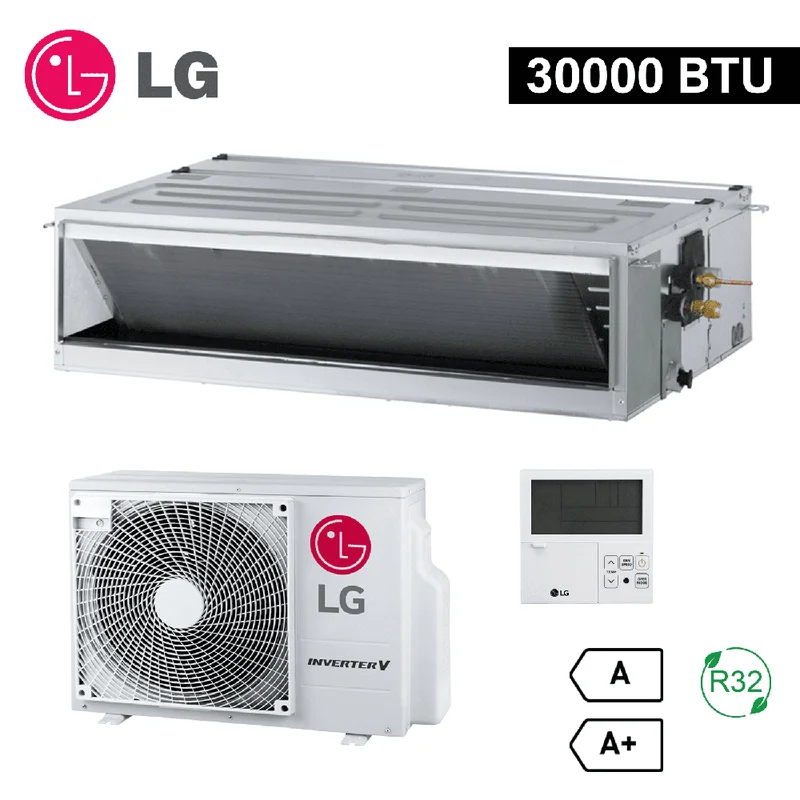

LG ducted air conditioner 30000 BTU 8.5 kW A+ A COMPACT vert/horiz – wall control included General features:
Heat pump system with Inverter technology
High static pressure ducted indoor unit for concealed installations
Eco-friendly R32 refrigerant with low GWP
Quiet operation and continuous capacity modulation
Compatible with LG control systems and remote management
Model:
Series: LG Standard Inverter R32
Indoor unit model and BTU: UM30F.NA0 30,000 BTU
Outdoor unit model: UUB1.U20
Type: Ducted air-to-air heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 6.10 SCOP 4.20
Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A
Seasonal energy consumption kWh/year: Cooling 469 kWh/year Heating 1,544 kWh/year
Performance:
Cooling capacity (kW): Min 3.0 Nominal 8.5 Max 10.0
Heating capacity (kW): Min 3.0 Nominal 7.5 Max 9.0
Indoor unit sound pressure MAX-MIN (dB(A)): 41 33
Outdoor unit sound pressure MAX-MIN (dB(A)): 54 48
Cooling power input (kW): 0.40 2.70
Heating power input (kW): 0.40 3.08
Electrical data:
Power supply ( / V / Hz): 1 / 220240 V / 50 Hz
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 3/8″ 5/8″
Max air flow (Power) m³/min: 33.0
Maximum piping length with standard charge: 7.5 m
Maximum piping length with additional charge: 50 m
Maximum height difference (outdoor unit above): 30 m
Operating limits (outdoor temperature): Cooling 10°C / +50°C Heating 15°C / +18°C
Dimensions and weight:
Indoor unit without packaging HxWxD (mm) and weight (Kg): 300 × 1,150 × 700 mm 33 kg
Outdoor unit without packaging HxWxD (mm) and weight (Kg): 870 × 1,090 × 330 mm 60 kg
Product code: UM30F.NA0+UUB1.U20
