Descrizione

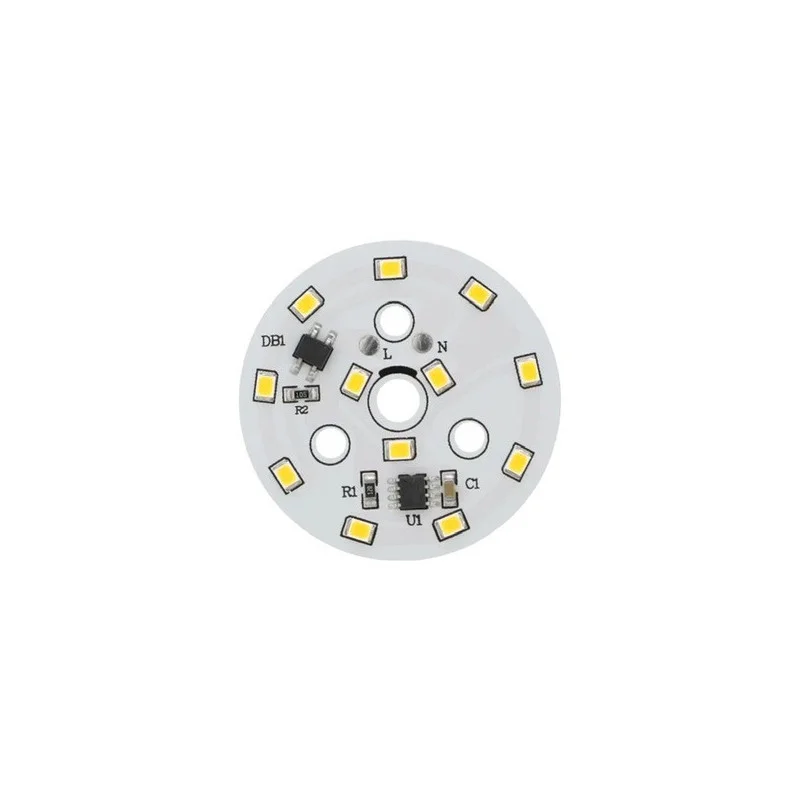

Round LED module for direct power supply from 220240V AC. It is intended for repair and production of luminaires where a compact light unit with a printed circuit board and a wide beam angle is required. The module is available in color temperature variants for warm and cool white.
Technical specifications
Power consumption: 7 W
Power supply: 220-240V AC
LED type: SMD 2835
Number of LEDs: 12
Module outer diameter: 50 mm
Beam angle: 120130°
Luminous flux: 530600 lm
Lifespan: 10,000 hours
Light color options: warm white (30003500 K), cool white (60006500 K)
Functions and features
Compact circular design suitable for integration into luminaires with limited space
Direct power supply from 220240 V AC mains without external DC source
Wide beam angle suitable for area lighting
SMD 2835 LED assembly for general lighting applications
Ideal for
Repairs and overhaul of network LED luminaires
Production of simple luminaires with direct power supply from the mains
Ceiling and wall lights with a circular light module
Technical and utility lighting in the interior
Package contents
1× LED module round Ø50 mm
Wires and terminal blocks are not included in the package.
Why choose this product?
Clearly defined parameters for light module design and replacement
Possibility to select color temperature according to application requirements
Standard LED type (SMD 2835) and compact size Ø50 mm
Suitable solution for service use and piece production of luminaires
Installation and operating instructions
The module does not contain wires or a terminal block; the lead wires must be soldered directly to the LED module’s printed circuit board.
Before soldering, verify the polarity/marking of the connection points on the board and use wires with appropriate insulation for the mains voltage.
Install the module on a suitable substrate with regard to heat dissipation; when designing the luminaire, ensure sufficient thermal insulation and ventilation according to the structure.
After installation, check the mechanical fastening, electrical insulation and strain relief of the supply wires.
Operate only in an enclosed luminaire or in a structure that prevents accidental contact with live parts.
Safety notice
The module is designed for 220240 V AC power supply; this is a dangerous mains voltage with a risk of electric shock, burns or fire.
Perform installation and service only with the power disconnected and after verifying that there is no voltage present on the wires.
We recommend that the installation and connection be entrusted to a person with appropriate electrical qualifications and knowledge of working with mains voltage.
Do not operate the module outside the luminaire without protection against contact; live parts may be present on the board.
Use proper tools and procedures when soldering; improper soldering can lead to overheating of the connections, short circuits, or loose wires.
Ensure sufficient insulation distances, mechanical relief of the leads and protection against vibrations; a loose wire can cause a short circuit or injury.
Do not install the module in an environment with water or high humidity unless the entire luminaire structure is designed for the given conditions.
Do not cover the module with thermal insulation materials or restrict heat dissipation; excessive temperature shortens the service life and increases the risk of failure.
If the board, LED or supply connections are damaged, do not use the module any further and remove it from service.
