The round LED module for direct power supply from the 220240V AC network is designed for integration into luminaires and lighting assemblies where a compact design and simple electrical connection are required. Thanks to its 44 mm diameter, it is particularly suitable for smaller luminaires, replacement of light panels and service repairs.
Technical specifications

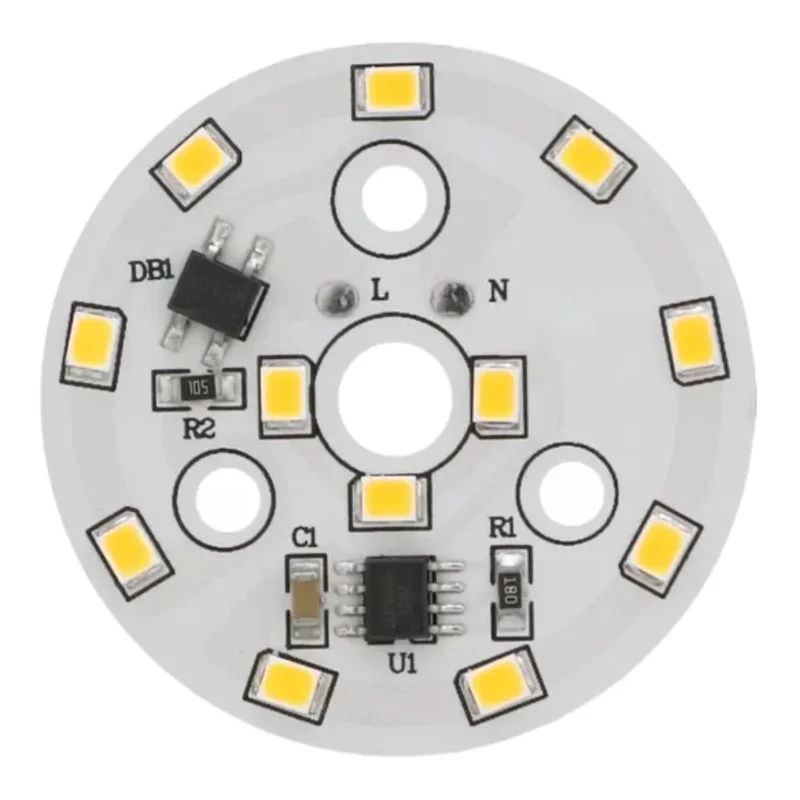

LED type: 2835 SMD
Number of LEDs: 12
Light color: white (depending on the variant, warm white 30003500K / cold white 60006500K)
Power supply: 220-240V AC
Power consumption: 5 W
Module outer diameter: 44 mm
Beam angle: 120130°
Luminous intensity: 400450 lm
Functions and features
Compact circular design for integration into luminaires with limited space
Wide beam angle suitable for area lighting
Power supply directly from the 220240V AC network (no need for an external DC source)
Light color variation according to the selected combination (warm white / cold white)
Ideal for
Service replacement of LED boards in mains powered luminaires
Recessed and surface-mounted luminaires with circular space for Ø44 mm module
Technical and utility luminaires where simple integration of the LED module is required
Package contents
1x LED module round Ø44 mm
Important: the module does not contain wires or a terminal block, the wires must be soldered directly to the printed circuit board of the LED module
Why choose this product?
Clearly defined parameters for the design and replacement of light modules
Compact size while maintaining useful luminous flux
Possibility to select color temperature according to application
Installation and operating instructions
Perform installation only when the power supply is disconnected and the workplace is secured against accidental switching on.
Solder the wires directly to the module’s solder pads; use wires with appropriate insulation for the mains voltage and ensure sufficient strain relief (mechanical securing of the wires outside the soldering point).
When soldering, reduce the heating time to the necessary minimum to avoid damaging the LED or the printed circuit board.
Install the module in the luminaire so that live parts cannot be touched and that sufficient distance from metal parts of the structure is ensured according to insulation requirements.
Ensure appropriate cooling according to the luminaire design; do not operate the module in a closed space without heat dissipation, as excessive heating may occur.
After installation, check the strength of the connections, insulation and perform a functional test in the luminaire.
Safety notice
The product is designed for 220-240 V AC power supply. Improper handling may result in electric shock, fire or damage to the device.
Entrust installation and service to a qualified person with knowledge of working on low voltage electrical equipment.
Do not connect the module to power during assembly, soldering or when the wires are exposed. Always verify that the module is de-energized before any intervention.
Do not operate the module outside the luminaire or without providing protection against contact. During operation, dangerous parts under mains voltage may be present on the board.
Ensure proper insulation and mechanical securing of the supply wires. A loose wire or insufficient insulation may cause a short circuit, overheating or injury.
Do not install the module in an environment with water, condensation or high humidity unless adequate protection is provided within the luminaire design.
Do not cover the module with thermal insulation materials and do not exceed the temperature limits given by the luminaire design; excessive temperature shortens the service life and increases the risk of failure.
If the printed circuit board, LEDs, solder pads or insulation are damaged, do not use the module any longer.
