Descrizione

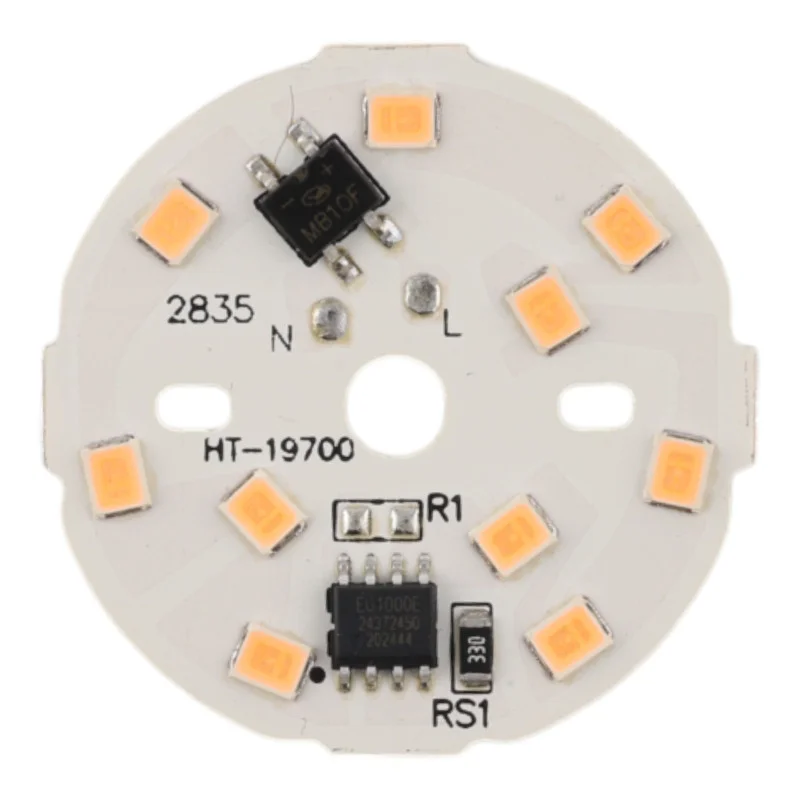

The round LED module for mains power supply 220240 V AC is designed for compact luminaires and lighting applications where simple integration onto a printed circuit board is required. The module is available in multiple light colour variants (green, red, blue).
Technical specifications
Product code: AM1911
Rated power consumption: 3 W
Power supply: 220-240V AC
LED type: 2835 SMD
Number of LEDs: 10
Outer diameter: 34 mm
Beam angle: 120130°
Luminous intensity: 270300 lm
Light color options: green, red, blue
Functions and features
Compact circular design suitable for integration into small luminaires
Wide beam angle for even illumination within the luminaire
SMD LED 2835 mounting for standard PCB mounting
Power supply directly from the 220240 V AC network (depending on module design)
Ideal for
Indicator and signal lights (according to the selected light color)
Recessed and decorative lighting with limited space
Service replacement of LED modules in luminaires compatible in size and power supply
Prototypes and custom designs of mains-powered luminaires
Package contents
1x LED module round Ø34 mm
Wires and terminal blocks are not included in the package.
Why choose this product?
Defined basic parameters for design and integration (voltage, power, size, angle, luminosity)
Multiple color options for different application requirements
Easy mechanical integration thanks to circular format
Installation and operating instructions
The module does not contain wires or a terminal block; the lead wires must be soldered directly to the LED module’s printed circuit board.
Before soldering, verify the polarity/marking of the connection points on the module and use wires with adequate insulation temperature resistance.
During assembly, ensure that the module is firmly attached so that there is no mechanical stress on the soldered joints.
After installation, check the electrical strength and insulation distances within the entire luminaire according to the requirements for the mains voltage.
For proper function, it is necessary to ensure adequate heat dissipation within the luminaire design.
Safety notice
The module is designed for 220240 V AC power supply. This is a dangerous mains voltage that can cause electric shock, burns or fire.
Only perform installation, connection and service when the power supply is disconnected and after verifying the absence of voltage.
We recommend that installation and connection be entrusted to a qualified person with knowledge of working on low voltage equipment in accordance with applicable regulations.
The LED module must be operated in an electrically safe enclosure/luminaire that provides protection against touching live parts.
Do not operate a module with a damaged circuit board, loose components, or visible signs of overheating.
When soldering, take care to avoid bridging conductive paths, cold junctions or mechanical damage to the pads; check the quality of the connections after soldering.
Ensure sufficient insulation distances, mechanical relief of the supply wires and protection against wires being pulled out of the soldered points.
Do not place the module in an environment with a risk of contact with water or condensation unless adequate protection is provided within the luminaire.
After completing the installation, check the function and safety of the entire device; if there are any unusual symptoms (odor, smoke, excessive heating), immediately disconnect the device from the mains.
