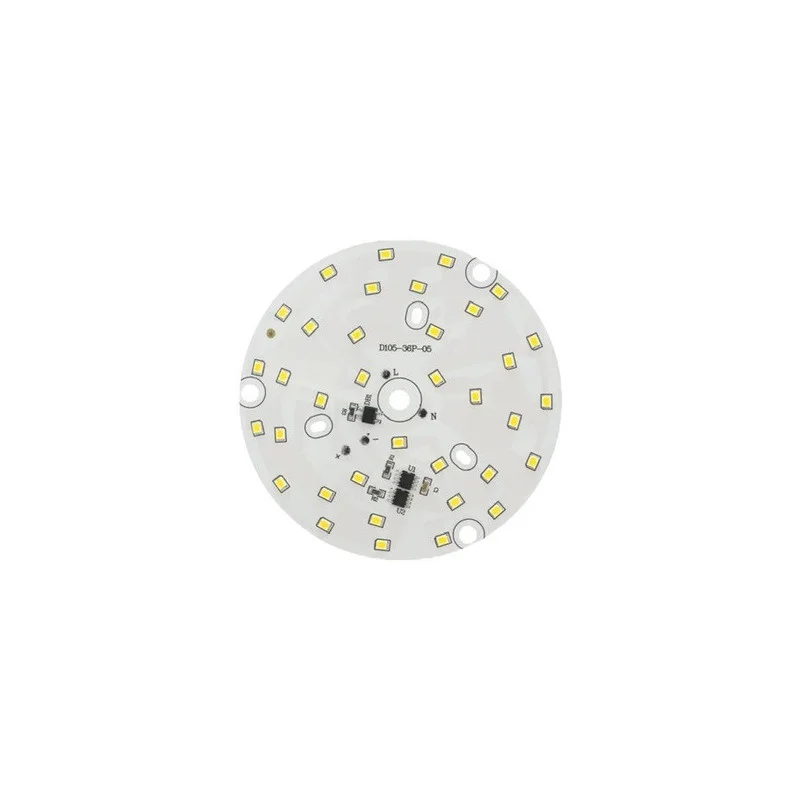

The round LED module for direct AC power supply is designed for repair and production of luminaires where a compact circular printed circuit board and a wide beam angle are required. The module is available in warm white or cool white light color options.
Technical specifications
Code: AM4172
Power consumption: 15 W
Power supply: 170-275V AC
LED type: SMD 2835
Number of LEDs: 36
Outer diameter: 105 mm
Beam angle: 120130°
Luminous intensity: 12001350 lm
Light color (variants): warm white 30003500 K, cold white 60006500 K
Functions and features
Circular design suitable for luminaires with a central space and uniform light distribution.
Wide beam angle for area lighting.
Possibility to choose the light color according to the application (warm/cold white).
Important: the module does not contain wires or a terminal block; the wires must be soldered directly to the LED module’s printed circuit board.
Ideal for
Repairs and overhaul of LED luminaires powered by AC mains.
Recessed and ceiling lights with a circular LED module.
Technical and utility lighting where a wide beam angle is required.
Package contents
1× LED module round Ø105 mm
Why choose this product?
Power supply directly from the AC mains in the range of 170275 V.
Defined mechanical dimensions for easy replacement in compatible luminaires.
Luminous flux and beam angle parameters suitable for area lighting.
Possibility to choose the color temperature according to the project requirements.
Installation and operating instructions
Before installation, check the mechanical compatibility (diameter 105 mm) and the method of attachment in the luminaire.
For connection, use wires with appropriate insulation for the mains voltage; solder the wires to the designated soldering pads on the PCB.
When soldering, work with the power supply disconnected and ensure mechanical relief of the leads (preventing the soldering pads from tearing off).
Ensure appropriate cooling according to the luminaire design; do not install the module in an enclosed space without heat dissipation.
After installation, check the fastening, insulation distances and perform a functional test.
Safety notice
The module is designed for a power supply of 170275 V AC. This is a dangerous mains voltage that can cause electric shock or fire.
Perform all work only with the power supply disconnected and after verifying that there is no voltage present on the connections.
Installation may only be carried out by a qualified person with knowledge of working on electrical equipment in network distribution systems.
Do not shorten the insulation distances and ensure safe routing of wires; prevent live parts from coming into contact with the metal body of the luminaire.
After soldering the wires, it is necessary to ensure electrical insulation and mechanical fixation of the connection so that it cannot become loose, short-circuit or come into contact with other parts of the luminaire.
Do not operate the module without a suitable luminaire cover/diffuser where live parts could be touched or conductive objects could enter.
Do not install the module in an environment with moisture condensation or in places where leaks may occur, unless the luminaire is designed for the given conditions.
In the event of a malfunction (odor, smoke, abnormal heating, flickering), immediately disconnect the power supply and do not use the device any further.
