Descrizione

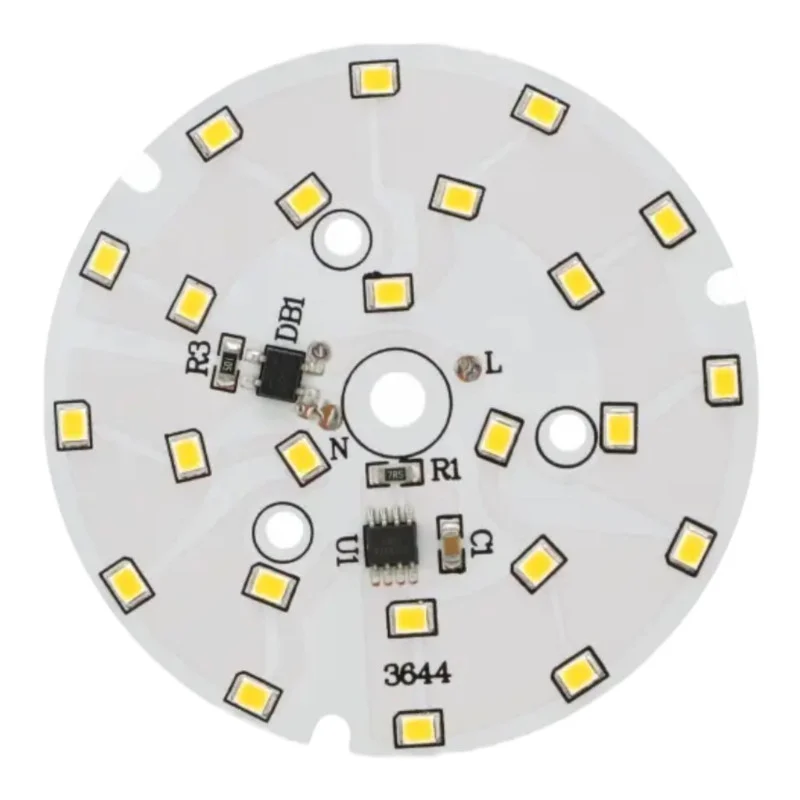

Round LED module for direct use in mains-powered luminaires. Thanks to its compact diameter of 74 mm, it is suitable for repair and production of luminaires where simple integration of the LED PCB and a wide beam angle are required.
Technical specifications
Code: AM9702
Power consumption: 12 W
Power supply: 170-275V AC
LED type: SMD 2835
Number of LEDs: 24
Outer diameter: 74 mm
Beam angle: 120130°
Luminous intensity: 9601080 lm
Light color (variants): warm white (30003500 K), cool white (60006500 K)
Functions and features
LED module on a printed circuit board for mounting in luminaires
Wide beam angle suitable for area and diffuse lighting
Possibility to choose color temperature according to product variant
Important: the module does not contain wires or a terminal block; wires must be soldered directly to the LED module’s printed circuit board
Ideal for
Repairs and overhaul of mains-powered luminaires
Recessed and ceiling lights with limited space (Ø74 mm)
Technical luminaires, workshop and utility lighting
Production of prototypes and custom luminaires
Package contents
1× LED module round Ø74 mm
Why choose this product?
Defined electrical parameters for mains power supply in the range of 170275 V AC
Compact size and standard SMD 2835 mounting for common lighting applications
Wide beam angle for even light distribution
Possibility to choose warm or cool white according to application requirements
Installation and operating instructions
Install the module on a mechanically solid and thermally suitable substrate; when designing the luminaire, it is necessary to ensure heat dissipation according to the structure and operating conditions.
Connect the wires by soldering them to the designated pads on the PCB; use wires with appropriate insulation for the mains voltage.
Before installation, check the spatial possibilities of the luminaire (diameter 74 mm) and avoid contact of the module with conductive parts without insulation.
After installation, check the mechanical fastening, insulation and function before putting into permanent operation.
Safety notice
The product is designed for mains power; it operates with hazardous voltages in the range of 170-275 V AC. Improper handling may result in electric shock, burns or fire.
Perform all wiring and installation work only with the power supply disconnected and after verifying that the device is de-energized.
Installation and servicing should be performed by a qualified person with knowledge of working on low voltage electrical equipment.
Do not switch on the module outside the luminaire or without adequate mechanical protection; it is necessary to avoid touching live parts and soldering points.
The module does not contain wires or a terminal block; improper soldering or insufficient insulation of the connections may cause a short circuit, overheating or electric shock.
Ensure sufficient insulation distances and mechanical relief of the connected wires to prevent loosening of soldered joints.
Do not operate the module in environments with high humidity or in places where condensation may occur unless the luminaire design provides adequate protection.
Do not cover the module with thermal insulation materials or restrict heat dissipation; excessive temperature may lead to shortened service life or failure.
If there is any damage to the board, LEDs or leads, do not use the module any further and remove it from service.
