Descrizione

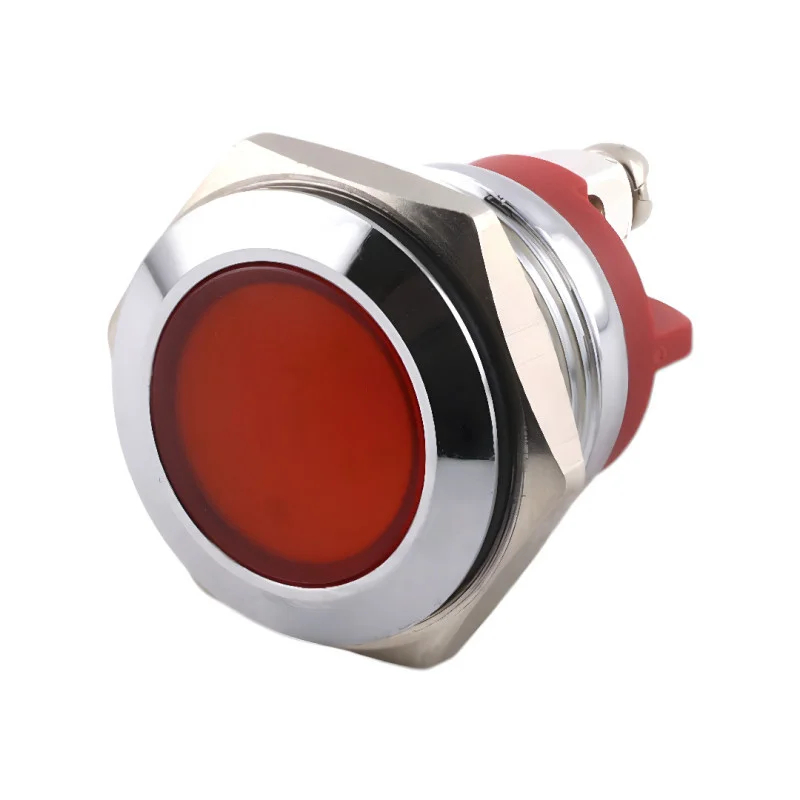

The compact metal LED indicator HYD-L-16 with a mounting diameter of 16 mm is ideal for visual signaling of power, operation or error status of devices. It is available in five color variants (yellow, blue, red, green, white) and thanks to its durable metal construction with IP67 protection, it is also suitable for demanding industrial applications. It offers reliable operation, long service life and elegant design for control panels, switchboards and DIY projects.
Technical specifications
Model: HYD-L-16
Mounting hole diameter: 16 mm
Housing thread: M16×1
Supply voltage: 36V / 1224V / 110220V (depending on variant)
Light source type: LED
LED colors: yellow, blue, red, green, white
Luminosity:
Red: 8001000 mcd
Green: 15002000 mcd
Yellow: 12001600 mcd
Blue: 9001500 mcd
White: 18002200 mcd
LED rated current: max. 20 mA
Body material: aluminum alloy with chrome finish
Connection type: wires or screw terminals
Protection level: IP65
Mechanical resistance: IK08 impact resistance
LED life: up to 40,000 hours
Body dimensions: 21.2 × 23.6 mm
Operating temperature: -20°C to +55°C
Weight: 18 g
Functions and features
Mounting in a 16 mm diameter hole using the included nut
High luminosity with low energy consumption
Metal body with non-flammable base ensures safety and stability
Durable O-ring seal ensures IP65 water resistance
Five colors available for different signaling purposes
Suitable for both DC and AC voltages
Long service life and maintenance-free operation
Ideal for
Industrial control panels and switchboards
Laboratory equipment and measuring instruments
Automation technology and CNC machines
DIY electronic projects
Power or device status indication
Package contents
1x metal LED indicator HYD-L-16
1× mounting nut
1× sealing O-ring
Why choose this product?
Compact dimensions and 16 mm mounting diameter
IP65 protection level and IK08 mechanical resistance
Universal power supply range 3220 V AC/DC (depending on the selected variant)
Durable metal construction with long service life
Elegant design and easy installation
Available in five color options for clear signaling
