Laser module red 650nm, line-Spedizione veloce

Descrizione

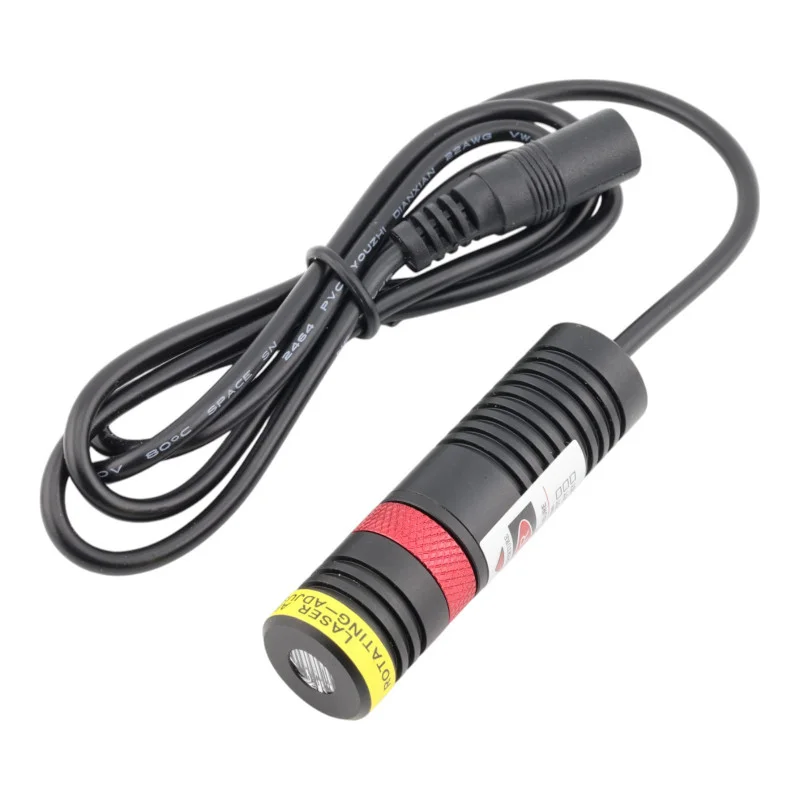

The 650nm red laser module is the ideal solution for applications where precise and clear line display is required. With selectable beam angles, it creates a sharp and clearly readable laser line, suitable for measuring and leveling systems, industrial applications and creative projects.

Technical specifications

Wavelength: 650 nm (red)

Projection type: laser line

Beam angle: depending on the variant 5°, 15°, 30°, 45°, 60°, 90°, 110°

Optical power: depending on the variant 10 mW, 30 mW, 50 mW, 100 mW, 150 mW, 200 mW

Supply voltage: 5V DC

Degree of protection: IP20

Operating temperature: 10 °C to +50 °C

Body dimensions: Ø18 × 65 mm

Power cable length: 100 cm

Functions and features

Good visibility of the red laser indoors even in low light

Sharp and even laser line projection

Compact metal design suitable for fixed mounting

Stable optical performance during long-term operation

Simple power supply from 5 V DC source

Ideal for

Industrial measuring and compensation systems

Positioning and control applications

Laser marking and reference lines

DIY and technical projects

Laboratory and development use

Approximate length of projection line

The table below shows the approximate lengths of the laser line depending on the beam angle and the distance of the laser module from the projected surface. The values given have a tolerance of ±10%.

Package contents

Laser module with 650 nm red laser

Why choose this product?

Wide range of power options up to 200 mW

Possibility to choose the radiation angle according to the application

Precise and stable laser line projection

Compact dimensions and easy integration into devices

Safety notice

Laser device. Never look directly into the laser beam or its reflection. Eye contact with the beam can cause serious eye damage. Wear protective glasses designed for a wavelength of 650 nm when working.
