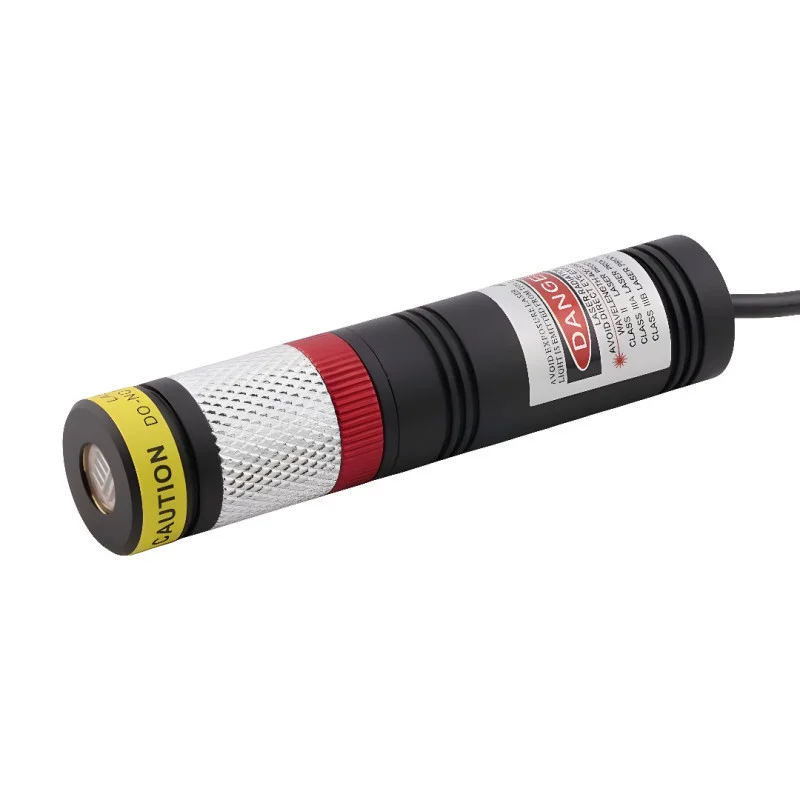

Waterproof laser module with a red beam with a wavelength of 650 nm designed for precise line projection. Thanks to the IP67 protection, the module is also suitable for use in damp or dusty environments. Glass optics allow fine focusing of the line width, which can then be fixed using a locking ring. Stable operation and long service life make it ideal for professional industrial applications.
Technical specifications
Wavelength: 650 nm (red)
Beam shape: line
Beam angle: 110°
Optical power (variants): 10 mW, 30 mW, 50 mW, 100 mW, 150 mW, 200 mW
Real output power:
10mW (7.58.5mW)
30mW (1824mW)
50mW (3845mW)
100mW (7595mW)
150mW (100120mW)
200mW (130150mW)
Operating mode: CW (continuous light)
Current control: APC
Supply voltage: 5V DC
Operating current: < 500 mA
Connector type: DC 5.5×2.1mm/5.5×2.5mm
Cable length: 100 cm
Housing material: aluminum
Optics material: glass
Module dimensions: diameter 20 mm × length 90 mm
Weight: 65g
Protection: IP67
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +85°C
Mean Time to Failure (MTTF):> 8,000 hours
Functions and features
Waterproof design with IP67 protection
Focusable glass optical lens
Focus lock using a locking ring
Stable output power thanks to APC/ACC regulation
Adjustable projection line width
Robust aluminum housing with good heat dissipation
Suitable for continuous operation
Ideal for
Laser positioning in industrial environments
Alignment of machines and production lines
Measurement and control systems
Construction and surveying applications
Outdoor installations exposed to moisture or dust
Industrial marking and guidance
Package contents
Waterproof 650 nm laser module
Why choose this product?
IP67 protection for use in harsh environments
Accurate and stable line projection
Fine mechanical focusing option
Long life and professional construction
Wide range of performance options
Suitable for industrial and outdoor applications
