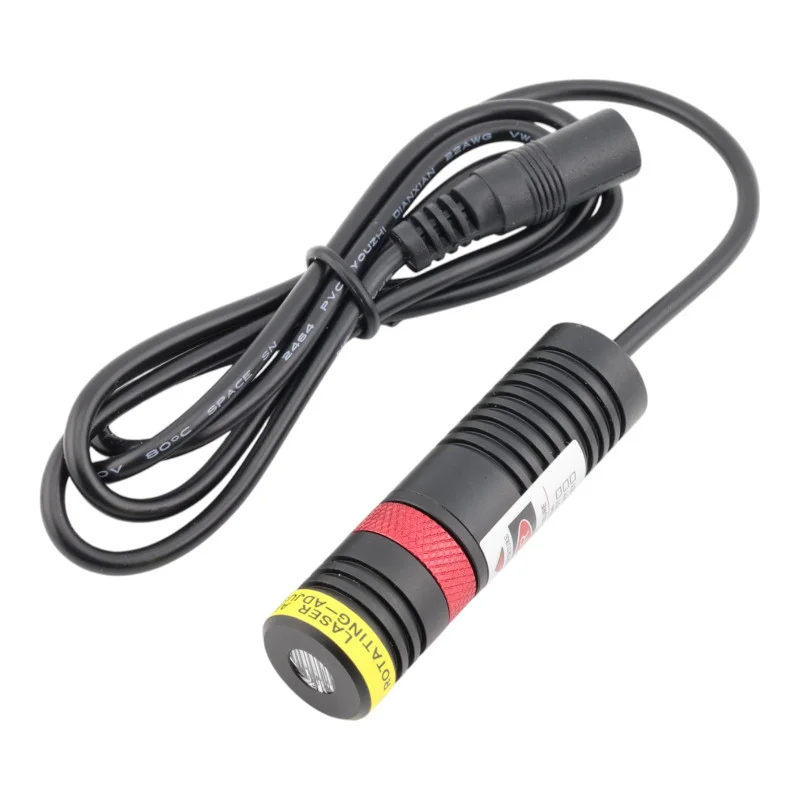

The 635 nm red laser module is designed for applications requiring circular projection with a central point using a DOE optical element. The module is suitable for targeting, positioning, optical marking, inspection systems and integration into devices where a compact design, 5 V DC power supply and stable operating parameters are required.
Technical specifications
Wavelength: 635nm
Projection type: circle with a dot
Optical system: DOE, adjustable focus
Nominal optical power according to variant: 10 mW, 30 mW, 50 mW, 100 mW, 150 mW, 200 mW
The actual optical performance of each variant is shown in the table below.
Operating mode: APC
Supply voltage: 5V DC
Working current: < 280 mA
Dimensions: D18 x 65 mm
Housing material: aluminum, in some substrates brass/aluminum
Lens material: PMMA
Connector: 1m cable with DC connector 5.5 x 2.1 mm
Operating temperature: -10°C to +40°C
Storage temperature: -40°C to +85°C
Mean time to failure: more than 8,000 hours
| Rated power | Real optical performance |
| 10mW | 7.5 to 8.5 mW |
| 30mW | 18 to 24mW |
| 50mW | 38 to 45mW |
| 100mW | 75 to 95 mW |
| 150mW | 100 to 120 mW |
| 200mW | 130 to 150 mW |
Functions and features
Red laser module for visible projection at 635 nm
The DOE optical element creates a circular pattern with a central point
Adjustable focus allows projection to be tailored to a specific working distance
APC and ACC operating modes support operation stabilization according to module design
Compact cylindrical housing is suitable for installation in devices and assembly fixtures
5V DC power supply allows easy integration into low-voltage systems
Long service life supports use in both industrial and laboratory applications
Ideal for
Positioning and aiming systems
Optical marking and marking
Industrial fixtures and measuring stations
Inspection and control equipment
Laboratory and development applications
Integration into machines and automation units
Package contents
1x laser module red 635 nm
Why choose this product?
Combination of compact dimensions and precisely defined optical projection
Clearly specified wavelength of 635 nm and 5 V DC power supply
Possibility to choose from multiple performance options according to application requirements
Providing real performance values for more accurate technical assessment
Suitable design for integration into technical and industrial systems
Installation and operating instructions
When installing, ensure that the module is firmly attached and aligned correctly with the target surface.
For proper operation, it is necessary to use a stabilized 5 V DC power supply.
When adjusting the focus, we recommend adjusting at a working distance appropriate to the specific application.
Operate the module within the permitted temperature range and ensure adequate heat dissipation.
It is not recommended to exceed the specified electrical power supply and current load parameters.
Safety notice
Laser radiation can be dangerous to your eyes
Never look directly into the output beam or its reflection from shiny surfaces.
Install the module so that the beam is not directed into the area where people move.
When integrating into the device, the relevant safety regulations for laser devices must be observed.
The product is not intended as a toy or for use by children.
