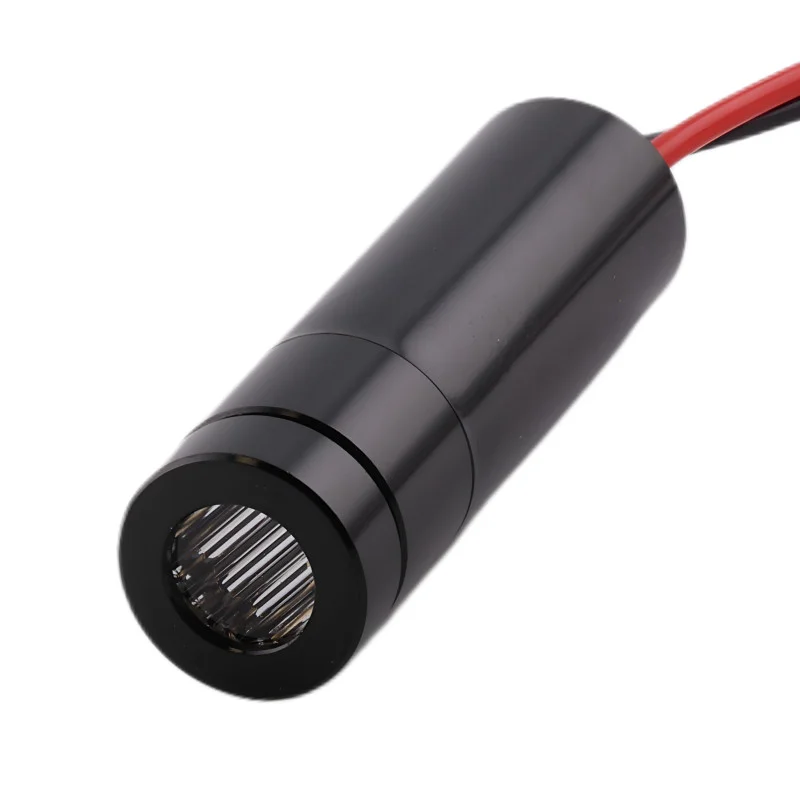

Powerful laser module with a wavelength of 405 nm, optical power of 100 mW and a wide beam angle of 110°. The APC power control variant ensures stable optical output even with variable supply voltage. Thanks to its compact dimensions and 3-5 V power supply option, it is suitable for industrial, laboratory and imaging systems.
Technical specifications
Wavelength: 405 nm (blue/violet)
Optical power: 100 mW (typical range 75-95 mW)
Lens: PMMA
Beam angle: 110°
Control electronics: APC (Automatic Power Control)
Operating voltage: 3-5V DC
Operating current: up to 1000 mA
Protection: IP20
Module dimensions: 12 × 12 × 35 mm
Cable length: 100 mm
Operating temperature: 10 to +40 °C
Storage temperature: 40 to +85 °C
Certification: CE, RoHS
Mean time to failure (MTTF):> 8,000 h
Weight: 18g
Functions and features
APC control ensures stable performance regardless of supply voltage changes.
Wide 110° beam angle suitable for projection, lighting and optical sensors.
PMMA lens for homogeneous beam dispersion and low weight.
Stable operation, low heat loss and long service life.
Easy integration thanks to 3-5 V power supply.
Construction
The laser module must not be conductively connected to any metal part of other equipment it must be electrically insulated.
The reason is the design of a semiconductor laser diode, one pole of which is connected directly to a metal housing.
Use antistatic equipment during assembly, as the laser diode can be damaged by even a small electrostatic discharge.
Avoid contact with radiators, water pipes and other conductive objects – they can cause unwanted grounding.
Never connect the module metal to another metal component of the device.
Cooling
The laser module does not require additional cooling its heat losses are low.
When properly fastened, there is no overheating or shortening of the service life.
It can be securely mounted in a bracket or housing without the need for active heat dissipation.
Ideal for
Industrial sighting and indication systems
Optical sensors and measuring technology
Laboratory experiments and fluorescence
Projection and imaging applications with large beam coverage
Package contents
1× laser module 405 nm, 100 mW
Why choose this product?
Stable performance thanks to APC control.
Wide 110° beam angle for applications requiring high optical dispersion.
Compact design, easy integration and long service life.
CE and RoHS certification, quality design and reliable operation.
