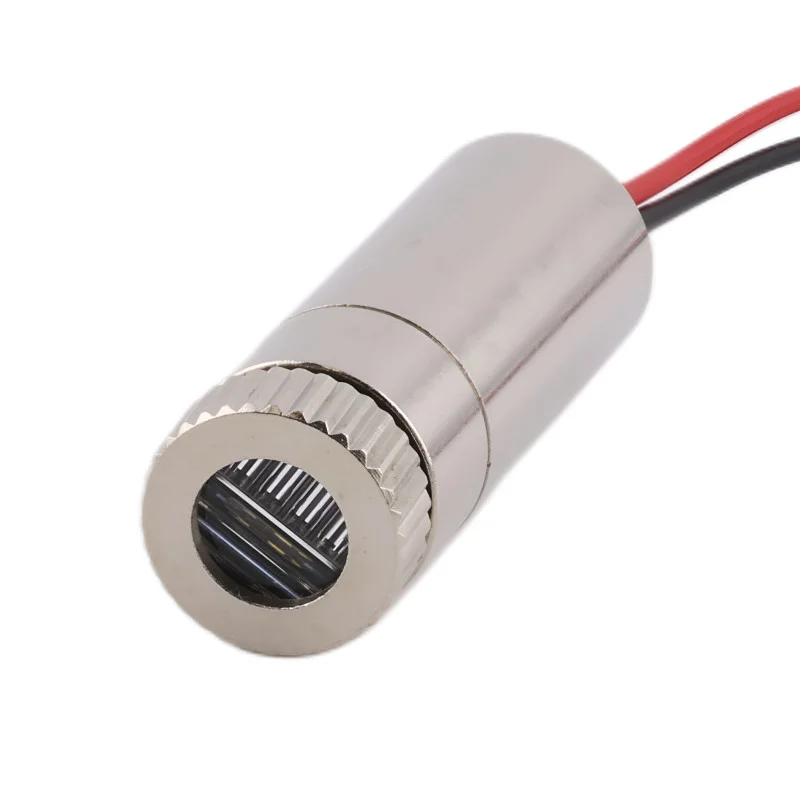

Compact and precise cross laser module with a wavelength of 405nm, aluminum body and focusable lens offers projection in the form of a point, line or cross (optional). Ideal for aiming, marking or various optical applications. Thanks to the focusing option and wide projection angle (120°) it is also suitable for more demanding projects with requirements for precise line output.
Technical specifications
Wavelength: 405 nm (violet laser)
Output power: 5mW
Working voltage: DC 3-5V
Working temperature: +15 °C to +35 °C
Duty cycle: 45 s on / 15 s off
Beam shape: cross (120°)
Focusing option: yes (focusable output)
Body material: anodized aluminum
Dimensions: 12 × 35 mm
Cable length: approx. 100 mm
Protection class: IP20 (for indoor use)
Certification: CE, RoHS
Functions and features
High precision and stability of the light spot
Possibility of projecting a line at an angle of up to 120° or a cross (optional)
Focus function to adjust projection size and sharpness
Compact design with aluminum body for optimal heat dissipation
Low power consumption and no need for external cooling
Ideal for
Precise line marking in industrial applications
Laser aiming and optical tests
DIY electronic projects and CNC machines
Educational experiments and demonstrations of laser phenomena
Package contents
1× 405nm laser module
Construction
During assembly, it is necessary to electrically isolate the laser module from other metal parts. The laser diode usually has one pole connected to a metal housing, which serves as a heat sink. A direct conductive connection could damage the diode. At the same time, we recommend using antistatic agents, avoiding clothing that generates electrostatic charge, and touching a grounded object (e.g. a heater or water pipe) before handling.
Cooling
The module does not require any additional cooling due to its low power and efficient heat dissipation. It is also suitable for closed installations without the risk of overheating or shortened lifespan.
