Descrizione

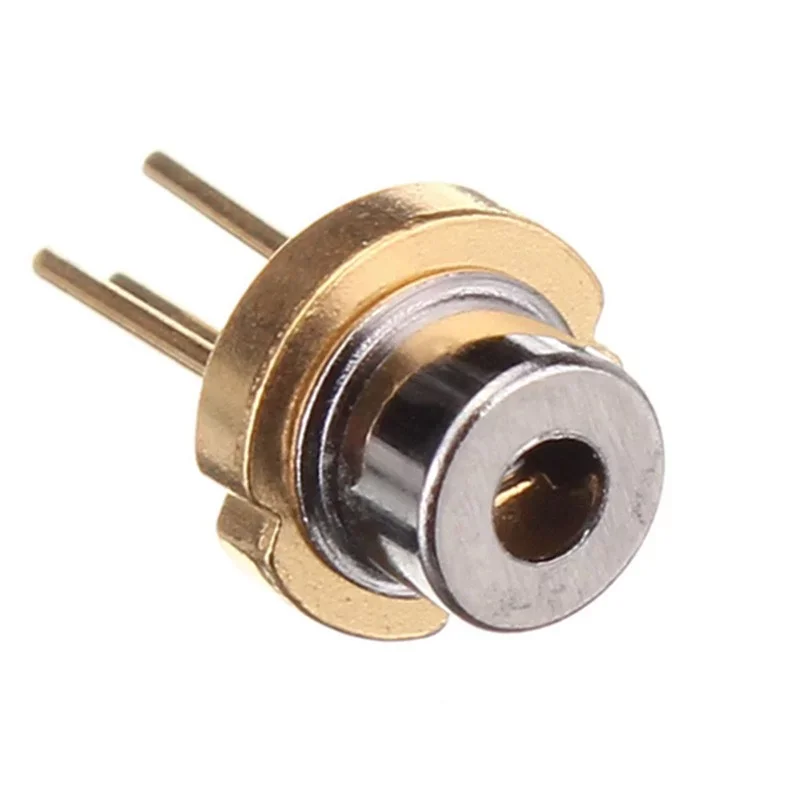

Laser diode with a wavelength of 980nm and a power of 10mW.
wavelength 980nm
voltage 1.6-2.1V
reverse voltage 2V
current 78-82mA
degree of protection IP20
working temperature -10 – 50 °C
size 5.6×5.6x 10 mm
price for 1 piece
Pin connection: pin no. 2 (case) = ANODE, pin no. 1 = cathode LD, pin no. 3 = anode PD
