Descrizione

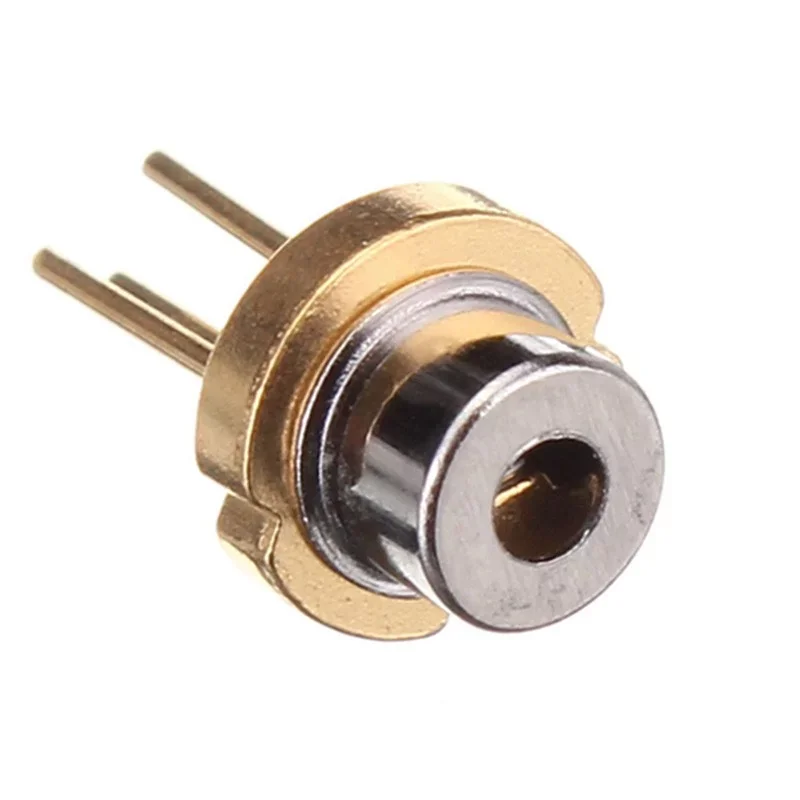

Laser diode with wavelength 785nm and power 5mW.
wavelength 780nm
voltage 1.9-2-3V
current 26-40mA
degree of protection IP20
working temperature -10 – 50 °C
size 5.6×5.6x 10 mm
price for 1 pc
pin connection: pin no.2 (case)=ANODE, pin no.1=cathode LD, pin no.3=anode PD
