Laser diode, 635nm, 5mW, diameter 5.6mm-Spedizione veloce

Descrizione

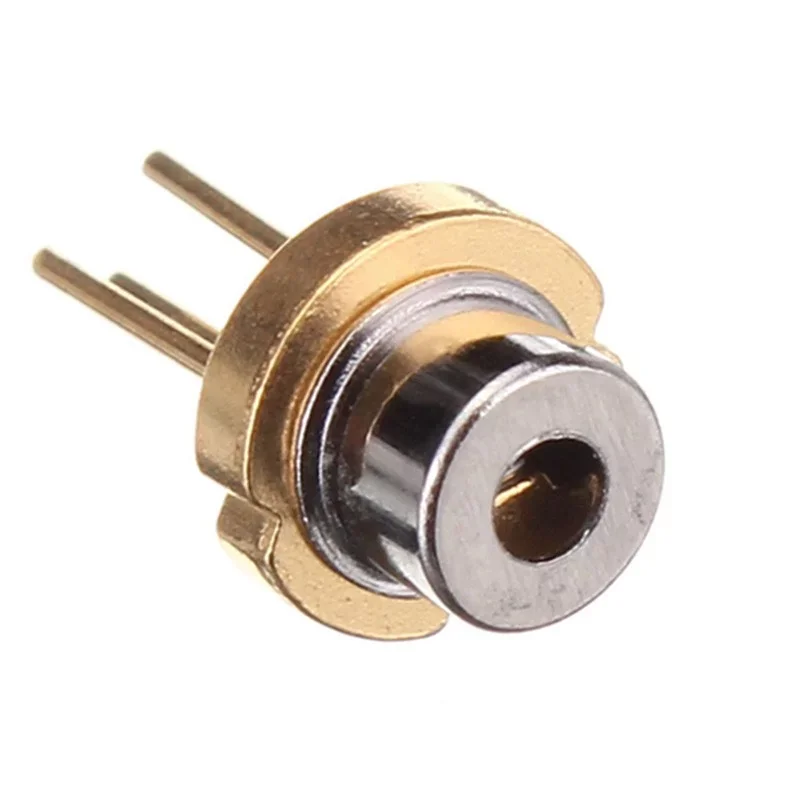

Laser diode with wavelength 635nm and power 5mW.
wavelength 635nm
voltage 2.2-2.7V
reverse voltage 2V
current 32-45mA
degree of protection IP20
working temperature -10 – 50 °C
size 5.6×5.6x 10 mm
price for 1 pc
pin connection: pin no.2 (case)=ANODE, pin no.1=LD cathode, pin no.3=PD anode
