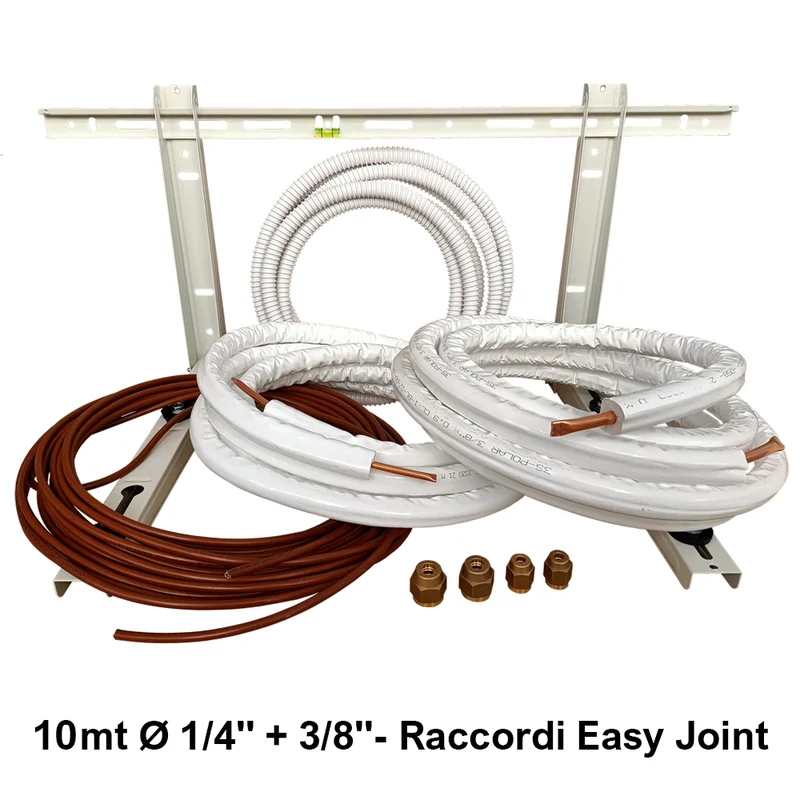

Installation Kit for Monobloc Split Air Conditioner
10 m of 6.35 mm (1/4″) pre-insulated copper tubing
2 6.35 mm (1/4″) self-flashing fittings
10 m of 9.5 mm (3/8″) pre-insulated copper tubing
2 9.5 mm (3/8″) self-flashing fittings
10 m of condensate drain pipe
10 m of 4×1.5 mm² four-conductor cable
1 bracket for monobloc outdoor unit
Copper Tubing Specifications:
ACR annealed (R220), mechanical properties, dimensions, tolerances, and eccentricity conform to UNI EN 12735-1.
Compatible with R407C and R410A refrigerants, internally cleaned and dehumidified with an inert gas with a maximum total residue of 0.034 g/m², and sealed ends conform to ASTM B280.
Insulating sleeve
Physically cross-linked, closed-cell expanded polyethylene insulating sleeve with the following technical characteristics:
Thermal conductivity at 40 °C 0.040 W/m·K
Water vapor diffusion coefficient (anti-condensation) 10,000
Fire reaction class 1
Operating temperature: -80 °C to +120 °C
CFC-free
White extruded polyethylene (LDPE) outer film with flame-retardant additive, bonded to the foam to ensure high anti-condensation performance and excellent abrasion and tear resistance.
MOUNTING FEATURES:
Load capacity: 80 kg
2 safety locks to prevent accidental unlocking
Spirit level included
2 anti-vibration mounts to be placed between the brackets and the wall
3 wall plugs with screws and washers
4 anti-vibration feet to be placed between the air conditioner and the brackets for optimal sound insulation
SELF-FLAVING FITTING FEATURES:
The metal seal and working pressure of up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems using low-environmental-impact refrigerants, for connecting pipes, valves, tanks, and other piping components.
The clamping ring acts like a vise on the outer surface of the pipe to resist pressure and ensure an effective seal.
Features:
Fluid temperature: -40°C to +150°C
Maximum operating pressure: 140 bar
Compatible with standard 45° flared fittings
No pipe end calibration or flaring is required, and no torque wrench tightening is necessary. Approvals:
CE (PED, RoHS, REACH), EAC
Performance exceeds the requirements of DIN 8912 and SAE J513 standards for standard 45° flared fittings.
Patented system.
CONDENSER DRAIN PIPE SPECIFICATIONS:
For recessed or ducted installation.
UV-resistant HDPE.
ELECTRICAL CABLE SPECIFICATIONS:
Four-conductor cable for 220V single-phase power supply (air conditioning).
Product code: KI.10.1/4-3/8
