Descrizione

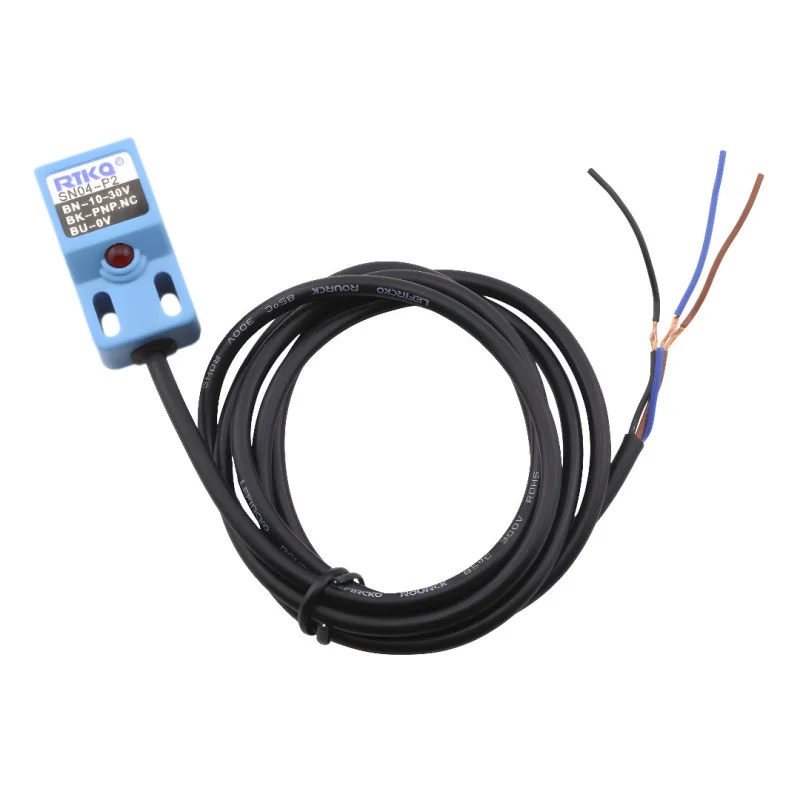

Inductive proximity sensor PNP NC with LED indication and mounting holes. The module is widely used in automation for detection, control and contactless switching.
Specifications:
Detection distance: 4 mm ±10%
Adjustable distance: 03.8 mm
Detected objects: magnetic and non-magnetic metals (detection distance decreases for non-magnetic metals)
Sensitivity: metal 18x18x1mm
On state indication
Supply voltage: 1030V DC
Output current: max. 300mA
Response frequency: 0.5 kHz
Output: 3 wires, Vcc, GND, NPN NO
Protection: IP67
Cable length: 120cm
Package contents: sensor, mounting screws
