Descrizione

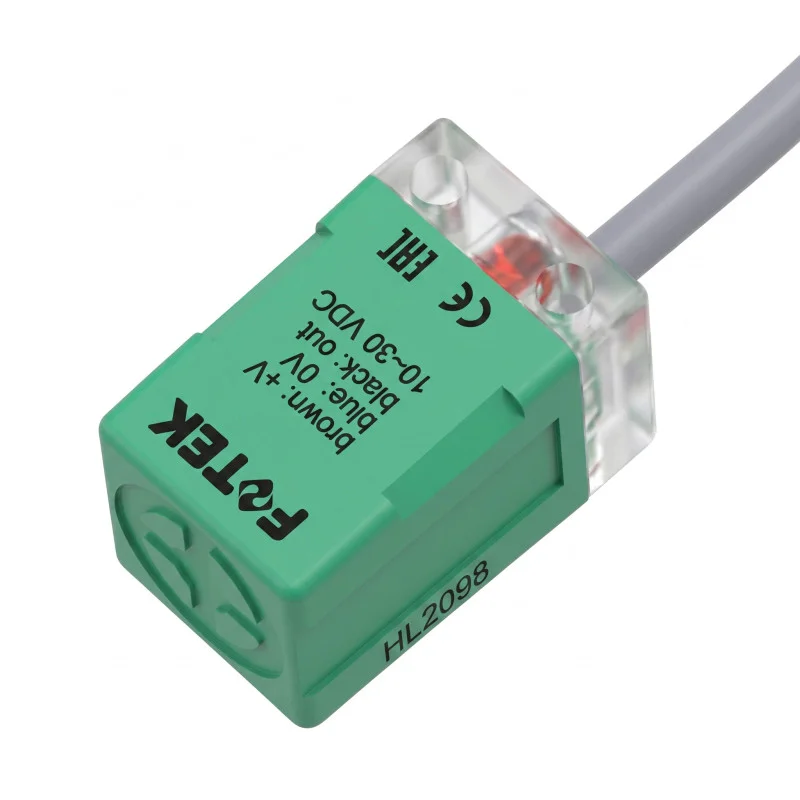

The PS-05P inductive sensor is used for non-contact detection of metal objects in automation, machine and industrial applications. It is a square sensor of the PS series with PNP output, designed for horizontal mounting. The sensor design is suitable for use where switching based on the approach of a metal object without mechanical contact is required.
Technical specifications
Model: PS-05P
Product type: inductive proximity sensor
Design: square
Output method: PNP
Output state: NO
Sensing distance: 5.0 mm
Mounting method: flush mounting
Scanning direction: horizontal
Supply voltage: 10 to 30 V DC
Maximum output current: 150 mA
Maximum self-consumption: 10 mA
Residual voltage: less than 0.1 V
Leakage current: less than 0.8 mA
Hysteresis: less than 10% of the sensing distance
Temperature drift: less than 10 m per °C
Voltage drift: less than 1 m per V
Protection circuits: short circuit and reverse polarity protection
Operating temperature: -25°C to +80°C
Operating humidity: 35% to 95% RH
Sensor dimensions: 17.0 x 17.0 x 29.0 mm
Mounting holes: 2 holes 3.2 x 2
Cable length: 100cm
Protection: IP67
Response frequency: 800 Hz
Functions and features
Non-contact inductive detection of metal objects.
PNP switching output in NO version.
Square body for fixed mounting in a structure or holder.
Recessed mounting design.
Horizontal scanning orientation.
Built-in protection against short circuit and reverse polarity of power supply.
IP67 protection rating for use in industrial environments.
Ideal for
Industrial automation and production lines.
Position detection of metal machine parts.
Sensing the presence of metal parts in fixtures and mechanisms.
Integration into control and signaling circuits with DC power supply.
Package contents
Inductive sensor PS-05P
Why choose this product?
Clearly defined technical design with PNP output and NO logic.
Flush mounting and square body facilitate integration into machine units.
Protective circuits increase resistance when connected in industrial applications.
IP67 protection and a wide range of operating conditions support use in more demanding operations.
Installation and operating instructions
Observe the correct wiring according to the wiring diagram for the PNP variant.
Install the sensor in accordance with the desired flush mounting method.
When installing, ensure the correct orientation of the sensing surface relative to the detected metal object.
Connect power supply and load only within the limits of the specified electrical parameters.
Safety notice
Only carry out electrical connections when the power supply is disconnected.
Incorrect wiring may cause damage to the sensor or connected equipment.
Installation into control and industrial systems should be carried out by a person with appropriate electrical qualifications.
Do not operate the sensor outside the specified power supply, current, and ambient conditions.
