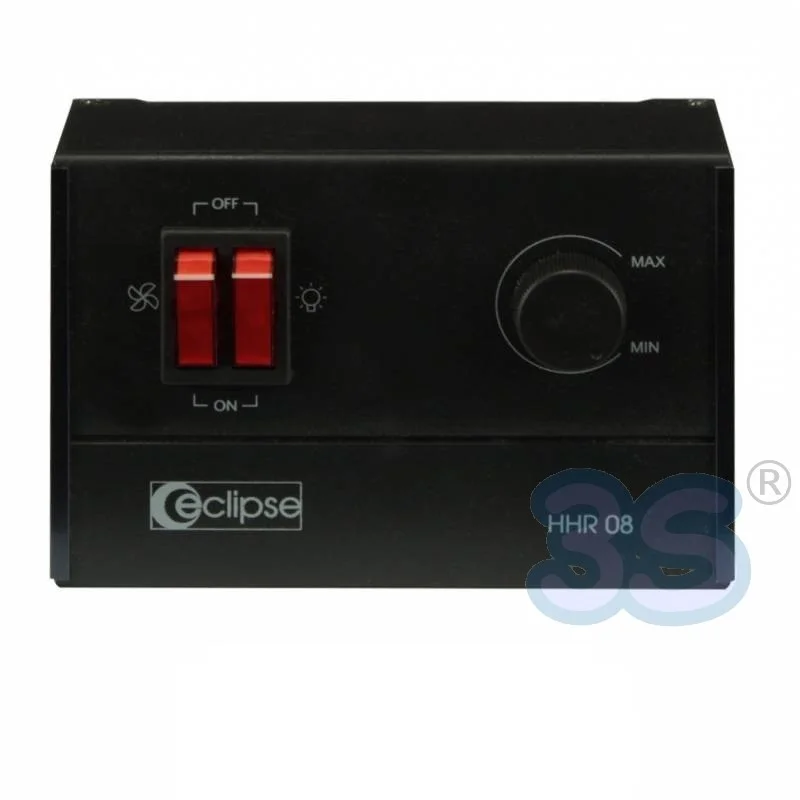

Electronic Speed Controller for Fans and Air Extraction
Item HHR-08 – SINGLE PHASE 230V
Features:
Specifically designed for residential use (wall installation), the HHR-08 controller is also built to handle heavy-duty applications such as continuous operation at maximum power (see technical data); this makes it suitable for any sector.
While it can control various types of loads, it is expressly designed for use with fans.
Additionally, the presence of a minimum speed adjustment trimmer allows adaptability to any motor within the permissible limits.
It meets CE regulations regarding electromagnetic compatibility and low voltage.
For installation and connections, follow the instructions provided with the product.
Technical Data:
Height: 90 mm
Width: 132 mm
Depth: 62 mm
Weight: 0.35 kg
Brand: Eclipse
Model: HHR-08
Voltage: 230 V 50/60 Hz
Current Consumption: Min. and max. current: 0.2-8.0 A
Power: Starting current: 12 A sec.
Peak current: 24 A ms.
Optional Accessories: Air extraction fans or ventilation fans
Certification: CE
Double switch:
Fan + lamp (does not regulate lamp intensity, only on-off)
Installation: Wall-mounted
Product Code: HHR-08
