Descrizione

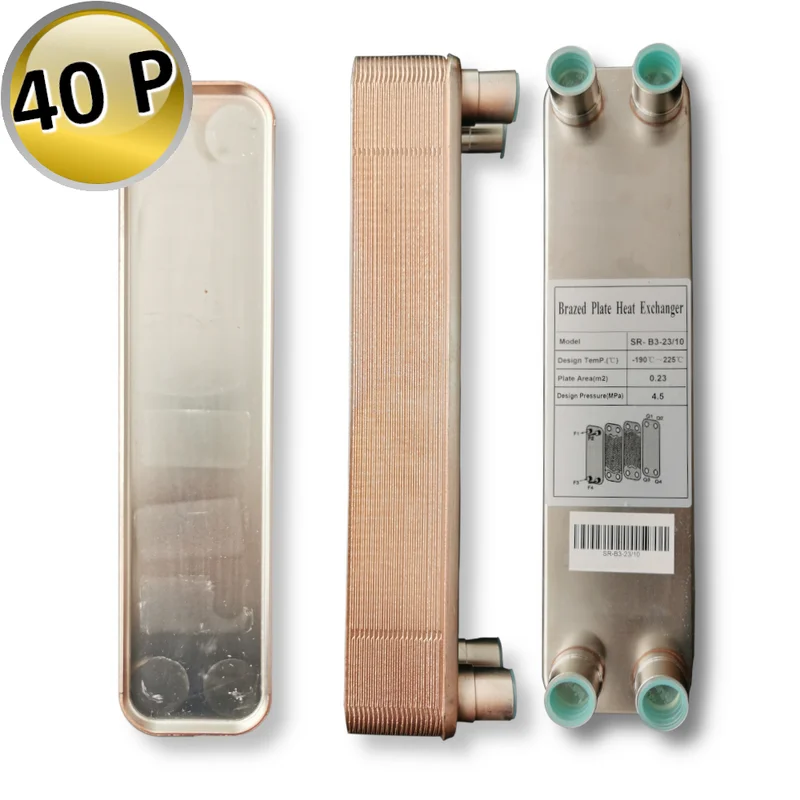

SR-B3-23/40 – Brazed plate heat exchanger with 40 plates 9 kW
ODS connections 3/4 (19.05 mm)
Brazed plate heat exchangers provide efficient heat transfer with minimal space requirements. They have a long life cycle, are maintenance-free, and can withstand both high temperatures and extremely high pressures.
Brazed plate heat exchangers are used in a wide range of applications including cooling, heating, evaporation, and condensation.
Various applications
Underfloor heating, radiator heating, and domestic hot water heating, as well as commercial refrigeration: brazed plate heat exchangers are used in a wide range of heating and cooling applications.
Advantages of brazed exchangers
Brazed plate heat exchangers offer numerous benefits. Brazing technology eliminates the need for seals and thick frame plates; it also provides excellent resistance to pressure and thermal fatigue in a wide variety of heating and cooling applications.
Lower capital investments
Small footprint
Reduced installation costs
Minimized downtime
Maximum reliability
Specifications:
ODS connection: 3/4 (19.05 mm);
Height: 315 mm;
Width: 75 mm;
Depth: 50 mm;
Body: Stainless steel.
Operating temperature: -195°C | +250°C.
codice prodotto: SR-B3-23/40
