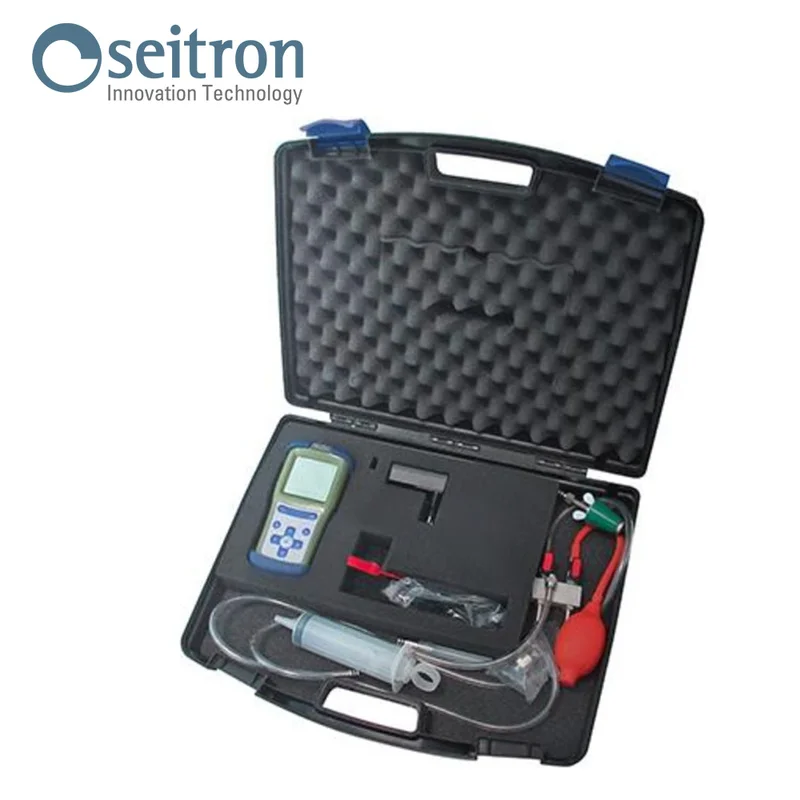

KV00010001SE – LEAK TEST KIT FOR COMBUSTIBLE GAS DISTRIBUTION SYSTEMS (METHANE – LPG)
with digital manometer GAS T ONE SEITRON
FEATURES:
Kit for testing the tightness of combustible gas distribution systems
Supplied in a rigid carrying case
Includes the GAS T ONE micromanometer, developed for tightness testing according to UNI 7129 (new systems) and UNI 11137 (existing systems)
Includes Bluetooth printer (kit code KV 0001) for receipt printing
Mains charger and rechargeable batteries for the printer
Set of non-porous plastic hoses with ball valve
Sealing plugs in various diameters
Metal fittings and rubber bulb for using air as test gas
TECHNICAL SPECIFICATIONS:
Power: Rechargeable Li-Ion battery pack with internal protection circuit
Battery life: 500 charge/discharge cycles
Battery charger: 5Vdc 2A external with USB type A female connector + serial communication cable
Charging time: 5h (090%), 6h (100%). Charging via PC may exceed 12h
Operation time: 20h continuous
Display: Black/White graphic, 128×128 pixels, white LED backlight
Connectivity:
USB communication port Type B
Bluetooth®: Class 1
Infrared interface: For optional external printer (HP-IR protocol)
Self-diagnosis: Function check and internal sensor fault detection
Internal memory: Stores 5 complete reports
Protection rating: IP42
Dimensions:
Instrument: 7 x 6 x 17 cm (W x H x D)
Case: 40 x 29 x 12 cm
Weight: Instrument ~ 0.35 Kg
Product code: KV00010001SE
