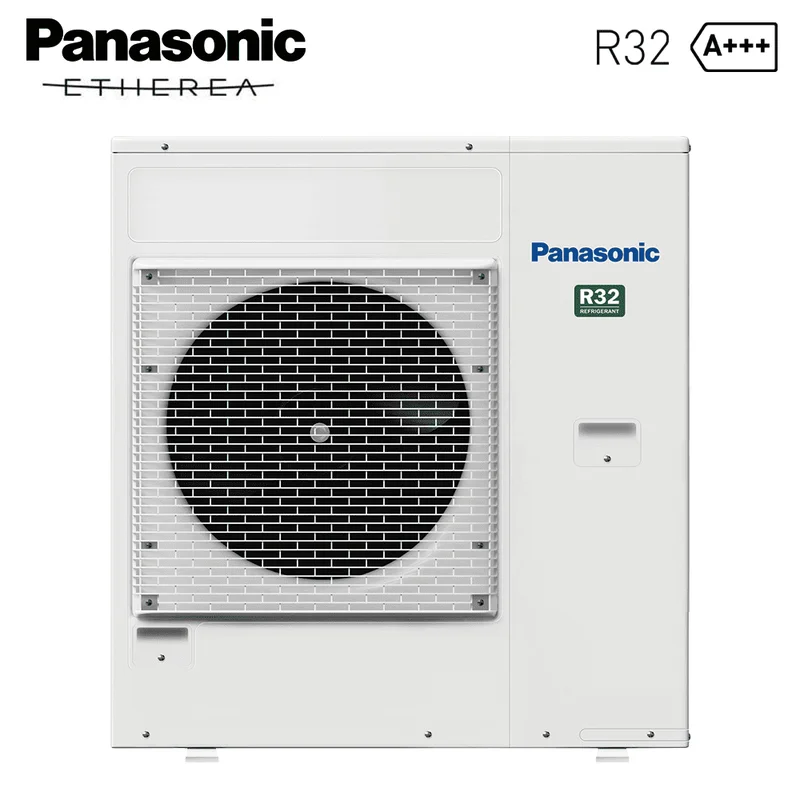

ETHEREA C penta outdoor unit 4.5 / 18.3 Kw for multi R32 systems – PANASONIC CU-5Z90CBE Model:
Outdoor unit: Multi R32 System
Outdoor unit model: CU-5Z90CBE
Type: Heat pump for multisplit systems
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 8,50 / 4,68
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 371 (cooling) / 2543 (heating) Connectable up to 4 indoor units with maximum power: 18,3 kW The unit must operate with a minimum of 2 indoor units connected.
Performance:
Cooling Capacity (kW): 9,00 (nominal) min 2,90 / max 11,50
Heating Capacity (kW): 10,40 (nominal) min 2,48 / max 14,50
Sound Pressure MAX-MIN (dB(A+1)): 53 / 54
Cooling input power kW: 2,24 (nominal) min 0,55 / max 3,86
Heating input power kW: 2,15 (nominal) min 0,50 / max 4,24
Heating capacity at -7 °C: 8,62 kW
Current cooling/heating: 10,70 A / 10,10 A
Electrical data:
Power supply ( / V / Hz): 1 / 230 V / 50 Hz
Technical specifications:
Refrigerant gas: R32 quantity 2,72 kg CO Eq. 1,836 t
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Maximum piping length with standard charge: 45 m
Maximum piping length with additional charge: up to 80 m total (20 g/m)
Pipe length range for each unit: 3 ~ 25 m
Height difference (ind./out.): 15 m
Operating limits (outdoor temperature): Cooling -10 ~ +46 °C / Heating -15 ~ +24 °C
Dimensions and weight:
Outdoor Unit dimensions HxWxD (mm) and weight (Kg) without packaging: 999 × 940 × 340 mm 81 kg
Product code: CU-5Z90CBE
