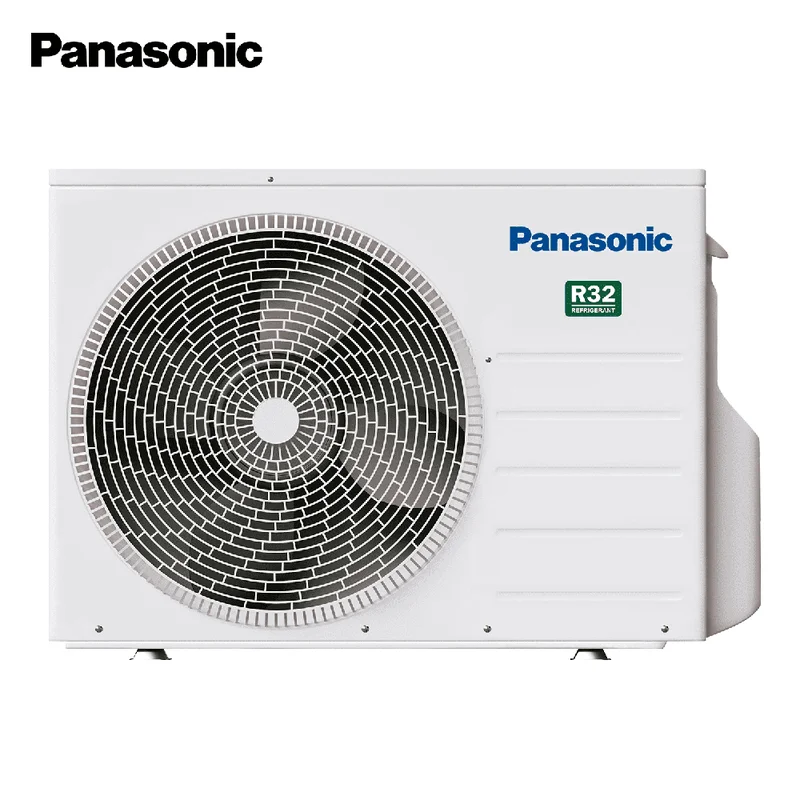

ETHEREA C dual outdoor unit 3.2 / 7.7 kW for multi R32 systems – PANASONIC CU-2Z50CBE Model:
Outdoor unit: Free Multi Z system
Outdoor unit model: CU-2Z50CBE
Type: air-to-air heat pump for multisplit systems
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 8.50 / SCOP 4.60
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: data not specified
Can be connected to up to 2 indoor units with maximum power: 5.0 kW. The unit must operate with a minimum of 2 indoor units connected.
Performance:
Cooling Capacity (kW): 5.0
Heating Capacity (kW): 5.8
Sound Pressure MAX-MIN (dB(A+1): data not specified
Cooling power input kW: 1.23
Heating power input kW: 1.35
Inverter technology: present
Multi-split compatibility: simultaneous management of multiple indoor units
Electrical data:
Power supply ( / V /Hz): 1 / 230 / 50
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 1/4″ / 3/8″
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: 30 m
Maximum indoor/outdoor unit height difference: 15 m
Maximum number of connectable indoor units: 2
Operating limits (outdoor temperature): cooling -10°C / +46°C; heating -15°C / +24°C
Dimensions and weight:
Outdoor Unit dimensions HxWxD (mm) and weight (Kg) without packaging: 622 x 824 x 299 mm 36 Kg
Product code: CU-2Z50CBE
