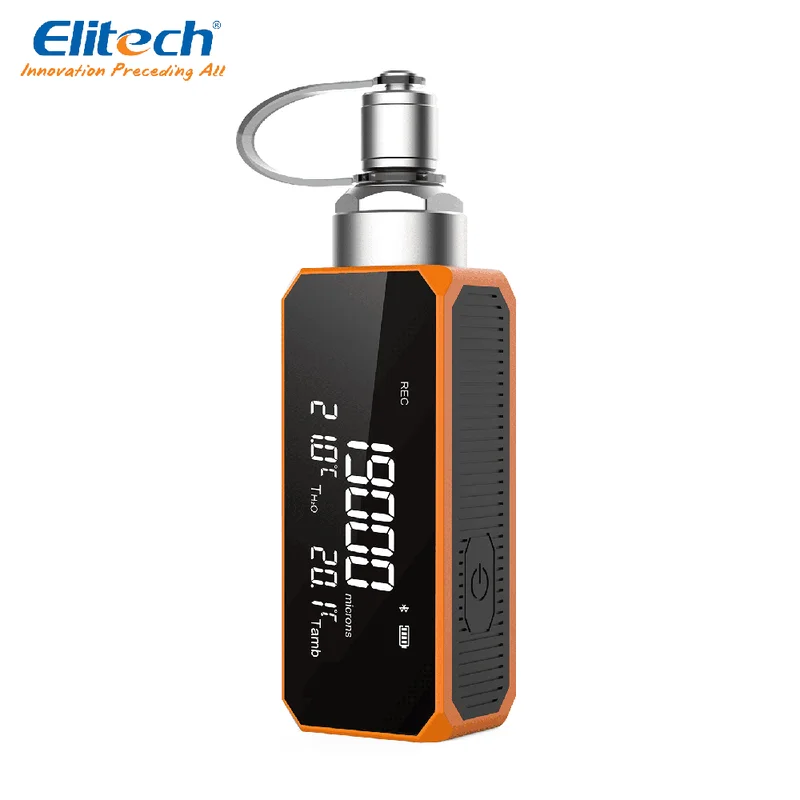

VGW-mini – DIGITAL VACUUM GAUGE
Supports HVAC Technicians
Description:
The Elitech VGW-mini wireless micron vacuum gauge measures the vacuum through a single service port with no refrigerant loss. The compact, rugged, and intelligent design supports HVAC technicians with many smart features like graphical representation of measurement data in the Elitech Tools app, saving valuable time and resources.
Features:
[High Precision] The digital vacuum gauge can accurately measure deep vacuum with one-digit resolution and alert when the evacuation target is reached.
[Smart App Control] Remotely control your micron tester and navigate through all measurement data via a smartphone or tablet. Quickly and conveniently document your work. Summarize your reports and export them directly from the job site.
[Smart H2O Status Judgment] The vacuum gauge automatically assesses the physical state of H2O by comparing the ambient temperature and the water saturation temperature corresponding to the vacuum in the system.
[Wide and Easy-to-Read Display] The continuous digital readout of the evacuation process data can be easily viewed on the large, full-screen LCD.
[Rechargeable Lithium Battery] The built-in rechargeable lithium battery can work for up to 20 hours with a single full charge, reducing the problem of frequent battery replacements.
Measurement Range: 0-19000 microns
Pressure Range: Operating temperature
Interface: 1/4 SAE
Accuracy:
1~10,000 microns: ±10% of readings ±10 microns
10,000~19,000 microns: ±20% of readings
Resolution:
0-400: 1 micron
400-3000: 10 microns
3000-10000: 100 microns
10000-19000: 250 microns
Vacuum Units: Micron, mTorr, in/Hg, Pa, Torr, KPa, mbar, and psia
Battery: Rechargeable lithium battery (1000 mAh)
Overload: 27.5 bar
Certification: CE
Product code: VGW-mini
