Elitech MS-870S SMART 4-way digital manifold gauge HVAC with Bluetooth-Spedizione veloce

Descrizione

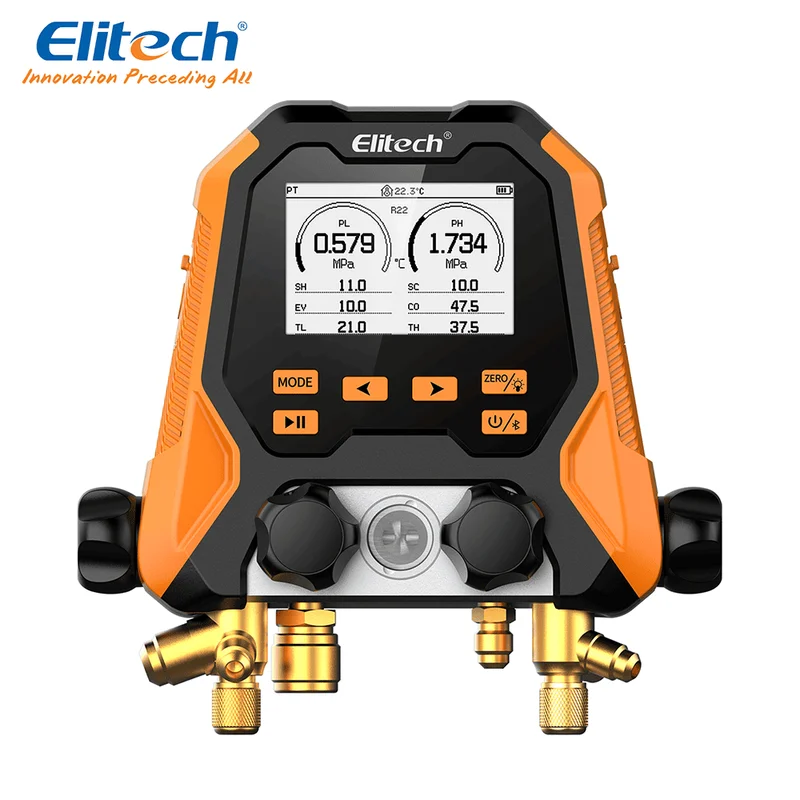

SMART 4-way digital manifold gauge Elitech MS-870S Description:

Elitech MS-870 is a 4-in-1 HVAC digital manifold gauge that combines pressure and temperature measurement, pressure holding, vacuum testing and data logging. It offers high accuracy (±0.5% FS), supports 18 refrigerants and connects via Bluetooth to the Elitech app for real-time monitoring, report visualization and remote data management. Designed to be durable, it ensures long battery life up to 150 hours and reliable operation even in demanding environments.

Technical data:

Measurement range: -14.5~800 psi

Accuracy: ±0.5% FS

Resolution: 0.5 psi

Units of measure: psi, /m², kPa, MPa, bar, inHg

Selectable refrigerants: R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600

Interface: 1/4 SAE ×3, 3/8 SAE ×1

Power supply: 3 AA batteries 1.5V

Battery life: not less than 150 hours (Bluetooth and backlight off)

Display: LCD screen

Dimensions: 186 × 186 × 66 mm

Weight: 1300 g

Operating temperature: -10~50 / 14~122

Storage temperature: -20~60 / -4~140

Kit includes:

MS-870 smart digital manifold gauge

IPT-01S wireless temperature clamp (2 pcs)

3/8″ SAE vacuum hose

Charging hose set with ball valve 1/4″ SAE (3 pcs)

R410A safety valve

R410A adapter 5/16″ SAE female to 1/4″ SAE male flare (2 pcs)

Tool carrying case

Codice prodotto: MS-870S
