Descrizione

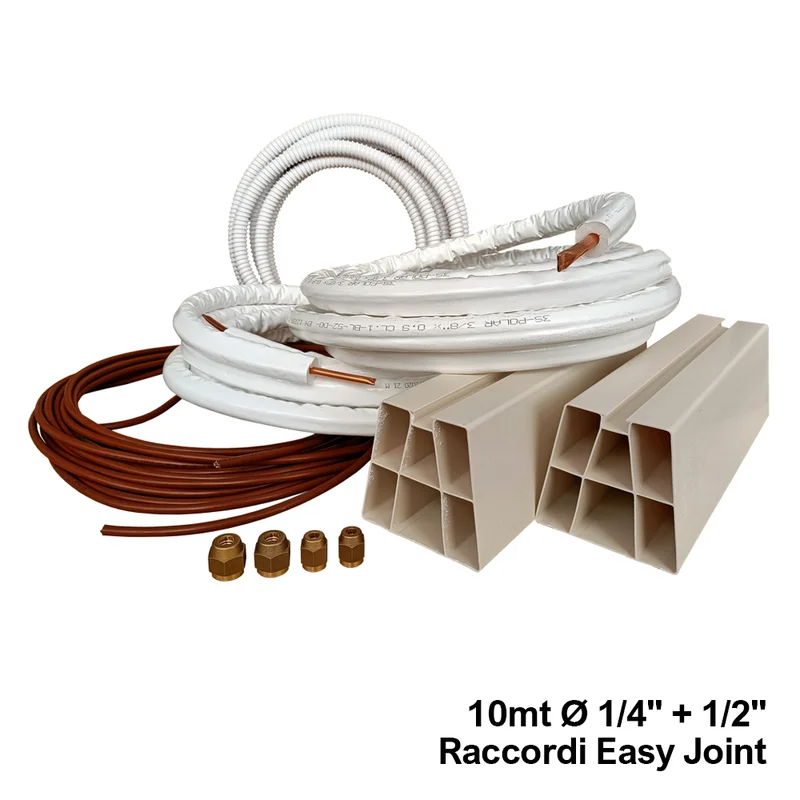

DIY Air Conditioner Installation Kit
10m Copper Tube ¼ Pre-insulated
2 Self-sealing Fittings ¼
10m Copper Tube 1/2 Pre-insulated
2 Self-sealing Fittings 1/2
10m Condensate Drain Tube
10m Four-Wire Cable 4×1.5
1 Pair of Floor Bases for Outdoor Unit
Copper Tube Features:
ACR annealed (R220), mechanical characteristics, dimensions, tolerances, and eccentricities meet UNI EN 12735-1 standards. Usable with refrigerants R407C and R410A, internal cleaning and dehumidification with inert gas with a maximum overall residue of 0.034 g/m² and sealed ends as per ASTM B280.
Insulation:
Polyethylene foam insulation with the following technical values:
– Thermal conductivity at 40°C 0.040 W/m*K
– Water vapor diffusion resistance factor (anti-condensation) 10000
– Fire reaction class 1
– Operating temperature -80°C to +120°C
– CFC-free
External film in extruded polyethylene (LDPE) white, with flame retardant additives, adheres well to the foam to ensure high anti-condensation performance, excellent resistance to abrasion and tearing.
Features of Floor Supports/Base for Outdoor Unit:
The floor supports are made of rigid and impact-resistant PVC, withstand high temperatures, and allow for quick installation with excellent aesthetics. Suitable for all air conditioner models with a load capacity of 140 kg. The honeycomb structure makes them anti-vibrant and easy to install quickly, and they come with galvanized bolts and nuts for securing the outdoor unit.
Self-Sealing Fittings Features:
The metal seal and operating pressure up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems using new low environmental impact refrigerants to connect tubes, valves, tanks, and general line components. The biting ring acts as a clamp on the outer surface of the tube to resist pressure and provide an effective seal.
Features:
– Fluid temperature: -40°C to +150°C
– Maximum working pressure: 140 bar
– Compatible with traditional 45° flange fittings
– No need to calibrate or flare the end of the tube, nor tighten with a torque wrench
Approvals:
– CE (PED, RoHS, REACH), EAC
– Performance exceeds DIN 8912 and SAE J513 requirements for traditional 45° flange fittings
– Patented system
Condensate Drain Tube Features:
For installations behind walls or in ducts
High-density polyethylene UV-resistant
Electrical Cable Features:
Four-wire cable for single-phase 220V power supply to air conditioners
Product code: KIB.10.1/4-1/2
