Descrizione

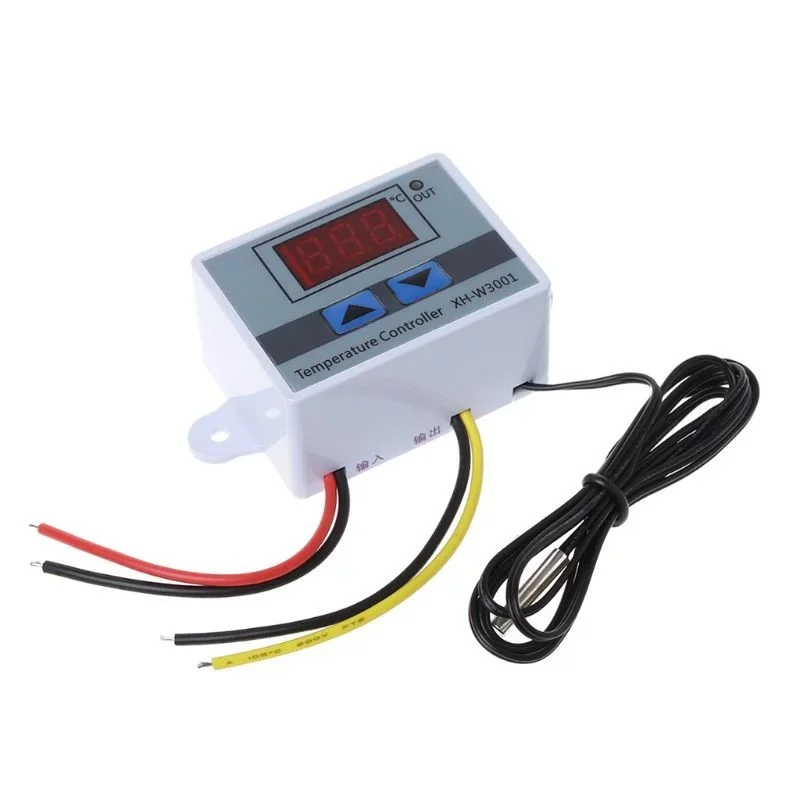

A simple digital thermostat with an output relay allows you to regulate the temperature in the range of -50°C ~ 110°C with a resolution of 0.1°C. For example, heating can be connected to one output and cooling to the other. Heating and cooling will then maintain the set temperature on the thermostat. The thermostat includes a resistance temperature sensor in a waterproof stainless steel housing with IP68 protection. Power supply 24V DC.
Power consumption: 3W
Adjustable temperature: -50°C ~ 110°C (resolution 0.1°C)
Temperature measurement accuracy: ±1%
Temperature sensor: NTC resistance, 10k, 0.5%
Switching contact: 24V DC 10A (with resistive load!)
Relay contact type: NO
Working temperature: 0 ~ 60°C
Display color: red
Dimensions: 60 x 45 x 30 mm
Accessories: waterproof NTC sensor, 1m
INSTRUCTIONS:
Press the up button to display the switching temperature
A long press of the up button will cause the value to flash, which you can then adjust.
Pressing the button down displays the cut-out temperature
You can adjust this value by long pressing the down button.
