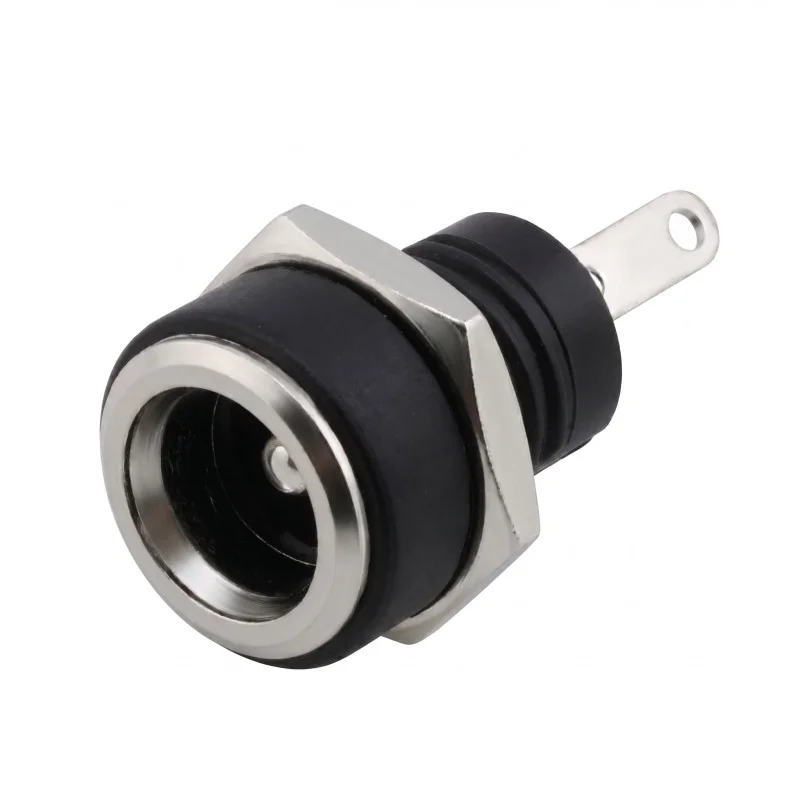

Panel DC socket (female) for supplying DC power to devices via a standard 5.5×2.1 mm connector. It is intended for panel mounting and is suitable for power inputs of devices, distribution boxes, measuring devices and built-in applications.
Technical specifications
Connector type: DC power socket (female), panel mount
Connector size: 5.5 × 2.1 mm
Model number: DC-220B
Mounting: threaded, with nut for fixing in the panel
Insulating body: plastic
Front design: metal collar
Working temperature: -30 to +70 °C
Electrical insulation strength: AC 50 V (50 Hz), 1 min
Insulation resistance: 100 M
Contact resistance: 0.03
Mechanical life: 5000 cycles
Functions and features
Standard size 5.5×2.1 mm for common DC power adapters
Panel design for fixed and repeatable power connection
3-pin connection allows connection variants including a switched contact (according to the internal connector design)
Design suitable for soldering wires or mounting into an assembly
Ideal for
Power inputs for electronic devices and modules
Project boxes and embedded applications
Service and test fixtures
LED and low voltage DC distribution within the device
Package contents
1× panel DC socket 5.5×2.1 mm + fixing nut
Why choose this product?
Dimensionally compatible with standard 5.5×2.1 mm DC plugs
Threaded panel mount ensures stable mechanical mounting
Suitable parameters for common low-voltage DC power supply in electronics
Installation and operating instructions
Before mounting, verify the dimensions of the panel opening and the available space for the connector body and pins.
Before connecting, identify the contacts and any switching function of the terminal by measurement or according to the diagram of your application.
Pay attention to the correct polarity of the power supply and mechanical relief of the connected wires.
Safety notice
Designed for direct current (DC) power; do not connect to mains voltage
Perform installation with the power disconnected and check for short circuits and polarity after connection.
