Descrizione

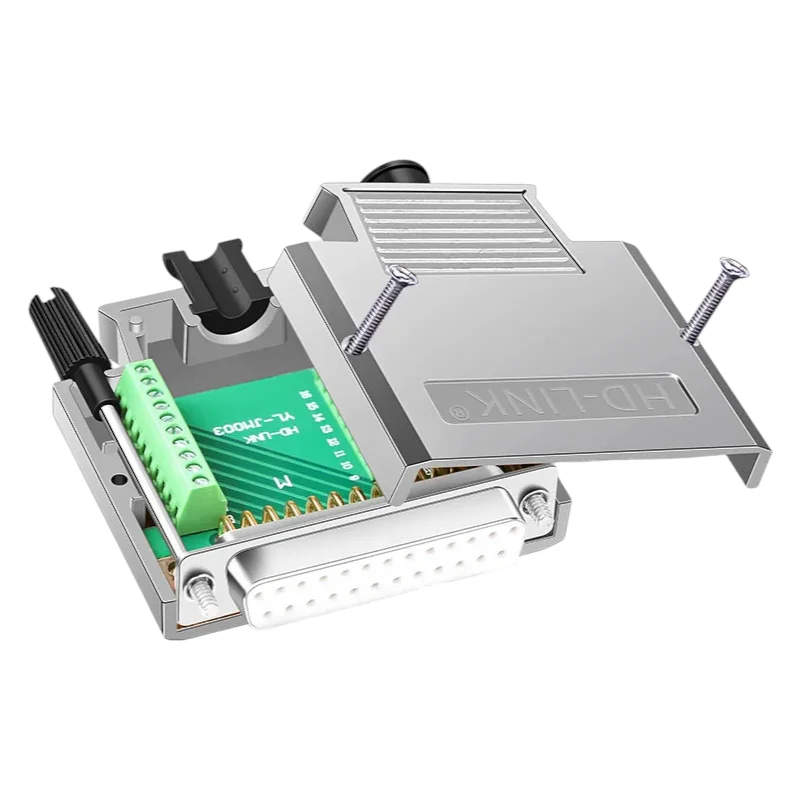

The D-SUB DE25 (often referred to as DB25) female cable connector is designed for terminating multi-core cables in industrial and communication applications. The metal shielded body and screw closure ensure mechanical resistance and stable fastening of the connector, including cable strain relief.
Technical specifications
Connector type: D-SUB DE25 (DB25)
Design: female
Number of pins: 25
Contact arrangement: 2 rows
Design: cable connector with screw cover
Body: metal (shielded)
Housing dimensions (approximate as shown in the picture): approx. 57 x 56 x 16 mm
Cable grommets: 4 pcs (for diameters approx. 5 mm, 6 mm, 7.5 mm, 8.5 mm)
Functions and features
Shielded metal housing to reduce the effects of electromagnetic interference in common installations
Screw-on housing design for easy service and reassembly
Cable strain relief using a grommet
Possibility of solid locking to the counterpart using screws/nuts
Ideal for
Production and repair of cabling with D-SUB 25 interface
Industrial equipment, measuring technology and control systems
Communication and service connections where mechanically resistant termination is required
Package contents
1x D-SUB DE25 (DB25) female cable connector in metal screw cover
4x cable grommets (approx. 5 mm, 6 mm, 7.5 mm, 8.5 mm)
2x screw
2x nuts
Why choose this product?
Standard DE25 (DB25) format for broad compatibility with D-SUB counterparts
Metal shielded design suitable for technical installations
Practical accessories included for different cable diameters and mounting to the counterpart
Installation and operating instructions
Before installation, select the appropriate grommet according to the cable diameter and ensure strain relief.
After connecting the wires, check the correct pin assignment according to your connection and then close the cover by screwing it.
For a mechanically stable connection, use the enclosed screws/nuts to secure it to the counterpart.
