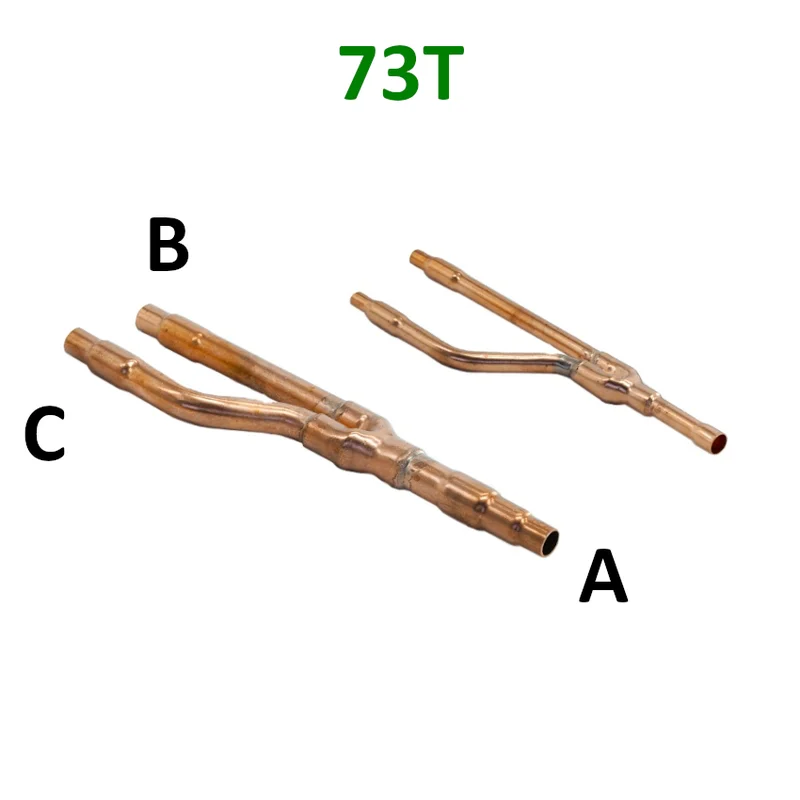

73T – Branch Joint VRV / VRF
Features:
The VRV / VRF 73T branch joint is designed to divide or combine refrigerant flow in direct expansion air conditioning systems. The various models accommodate multiple vapor and liquid line diameters, ensuring compatibility with a wide range of system configurations.
| 11T | Vapor Line | 19.05/15.88 | 15.88/12.70 | 15.88/12.70 |
| Liquid Line | 9.52 | 9.52/6.35 | 9.52/6.35 | |
| 22T | Vapor Line | 19.05/15.88/12.70 | 19.05/15.88 | 15.88/12.70 |
| Liquid Line | 9.52 | 9.52/6.35 | 9.52/6.35 | |
| 33T | Vapor Line | 19.05/22.22 | 19.05/15.88 | 15.88/12.70 |
| Liquid Line | 12.70/9.52 | 9.52/6.35 | 9.52/6.35 | |
| 37T | Vapor Line | 25.4/28.58/31.80 | 25.40/19.05/15.88 | 19.05/15.88/12.70 |
| Liquid Line | 12.70/15.88 | 12.70/9.52 | 12.70/9.52/6.35 | |
| 40T | Vapor Line | 31.80/38.10 | 31.80/28.58/25.40 | 25.40/19.05/15.88 |
| Liquid Line | 19.05/15.88 | 19.05/15.88/12.70 | 15.88/12.70/9.52 | |
| 72T | Vapor Line | 24.40/28.58/31.80 | 25.40/19.05/15.88 | 19.05/15.88/12.70 |
| Liquid Line | 12.70/15.88 | 12.70/9.52 | 12.70/9.52/6.35 | |
| 73T | Vapor Line | 31.80/38.10 | 31.80/28.58/25.40 | 25.40/19.05/15.88 |
| Liquid Line | 19.05/15.88 | 19.05/15.88/12.70 | 15.88/12.70/9.52 |
Product code: 73T
