Descrizione

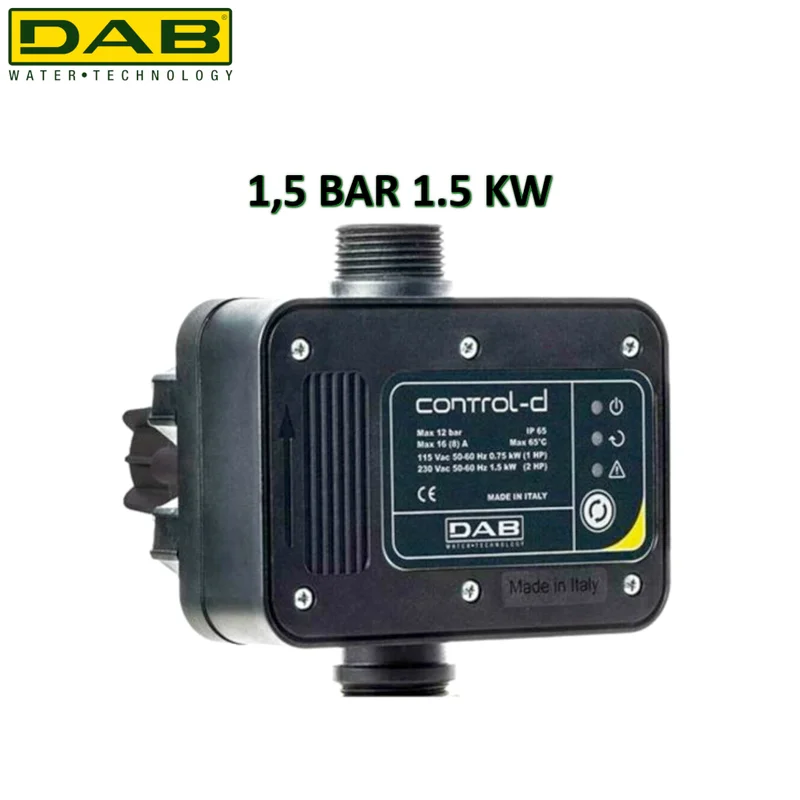

60180508 – Automatic Regulator – DAB CONTROL – D
For Electric Pumps with 1.5 m Cable
Technical Features:
Control and protection: Starts and stops the pump in operation, halts the pump in case of water shortage, and protects it from dry running. It is equipped with automatic reset in case of blockage and anti-blocking function.
Automatic electronic device designed to regulate the operation of electric pumps without the use of pressure tanks, performing the following main functions: Controls the continuous and automatic operation of the pump, maintaining constant flow and pressure during extraction from one or more points in the distribution network.
The electric pump starts when the system pressure is lower than the set value (std 1.5 bar).
In case of water shortage at the intake, it stops the electric pump without using level probes or float switches.
Operation is restored via a manual Reset button.
Alternatively, it automatically unlocks when a pressure higher than the set starting value is introduced into the delivery pipe.
In case of blockage due to water shortage, this device performs automatic reset attempts equivalent to the manual reset button pressure, approximately every 30 minutes.
Product code: 60180508
