Descrizione
Product Type Features

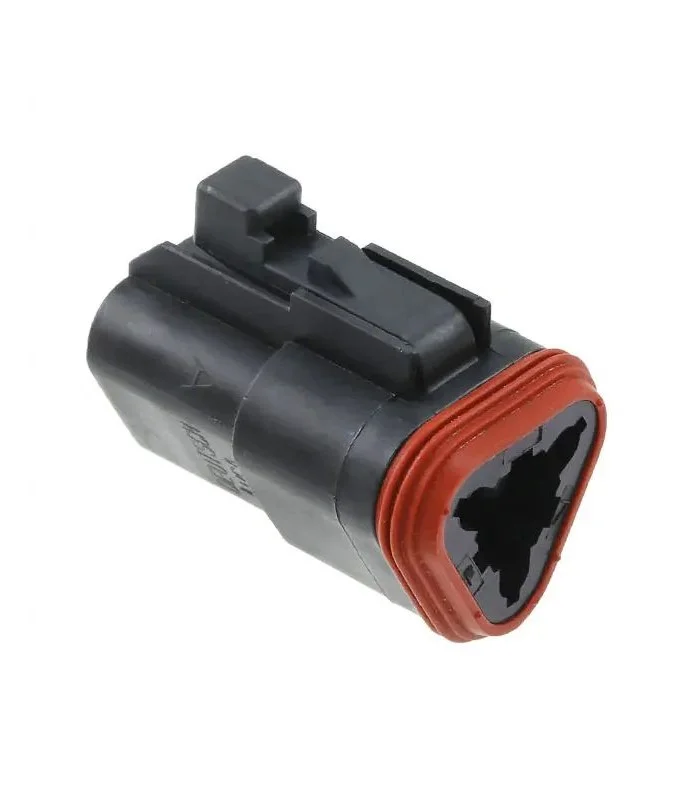

– Connector & Housing Type : Housing for Female Terminals
– Connector System : Wire-to-Wire
– Sealable : Yes
– Hybrid Connector : No
– Primary Locking Feature : Integrated in Housing
– Connector & Contact Terminates To : Wire & Cable
– Strain Relief : Add By Accessory
Configuration Features
– Number of Positions : 3
– Blank Cavity Position : 0
Electrical Characteristics
– Nominal Voltage Architecture (V): 12, 24, 48
– Operating Voltage (VAC): 250
– Operating Voltage (VDC): 250
Body Features
– Primary Product Color : Black
– Cable Exit Angle : 180°
– Body Material : PA GF
Contact Features
– Mating Pin Diameter : 1.59 mm [ .0625 in ]
– Contact Current Rating (Max) (A): 13
Mechanical Attachment
– Mounting Feature : Without
– Terminal Position Assurance : Yes
– Polarized : Yes
Housing Features
– Centerline (Pitch) : 10.01 mm [ .394 in ]
Dimensions
– Width : 18.37 mm [ .723 in ]
– Height : 23.73 mm [ .934 in ]
– Length : 28.4 mm [ 1.118 in ]
Usage Conditions
– Operating Temperature (Max) : 125 °C [ 257 °F ]
– Operating Temperature Range : -55 125 °C [ -67 257 °F ]
Operation/Application
– Circuit Application : Power & Signal
Industry Standards
– Degree of Protection : IP68, IP6K9K
– UL Flammability Rating : 12mm Flame Test per Standard UL-94
– Agency/Standard : SAE J2030
Other
– Connector Position Assurance Capable : No
– Serviceable : Yes
